Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiper arm on the wiper motor shaft in the park position with the wiper arm resting on the park ramp.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nut on the wiper arm.

    Tighten

    Tighten the nut to 23 N.m (17 lb ft).

  3. Install the cap on the wiper arm.
  4. Install the washer hose on the vehicle connector.

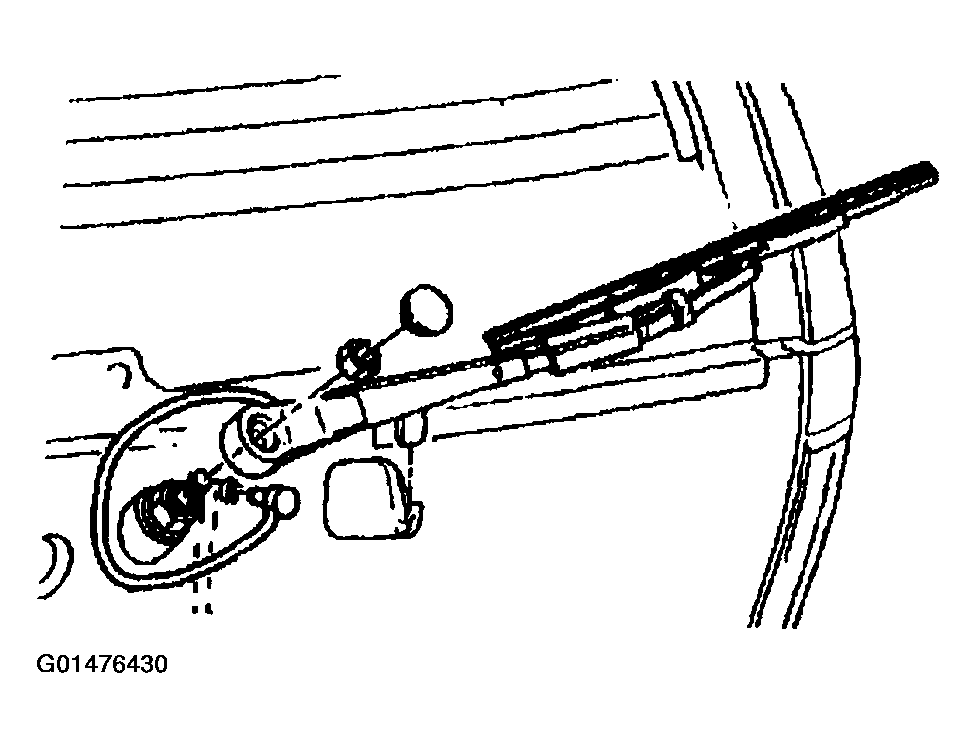

    Fig 1: Installing Nut On Wiper Arm
    G01476430Courtesy of GENERAL MOTORS CORP.
