Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the washer solvent from the solvent container.
  3. Disconnect the electrical connectors from the washer pumps.
  4. Disconnect the hoses from the washer pumps.

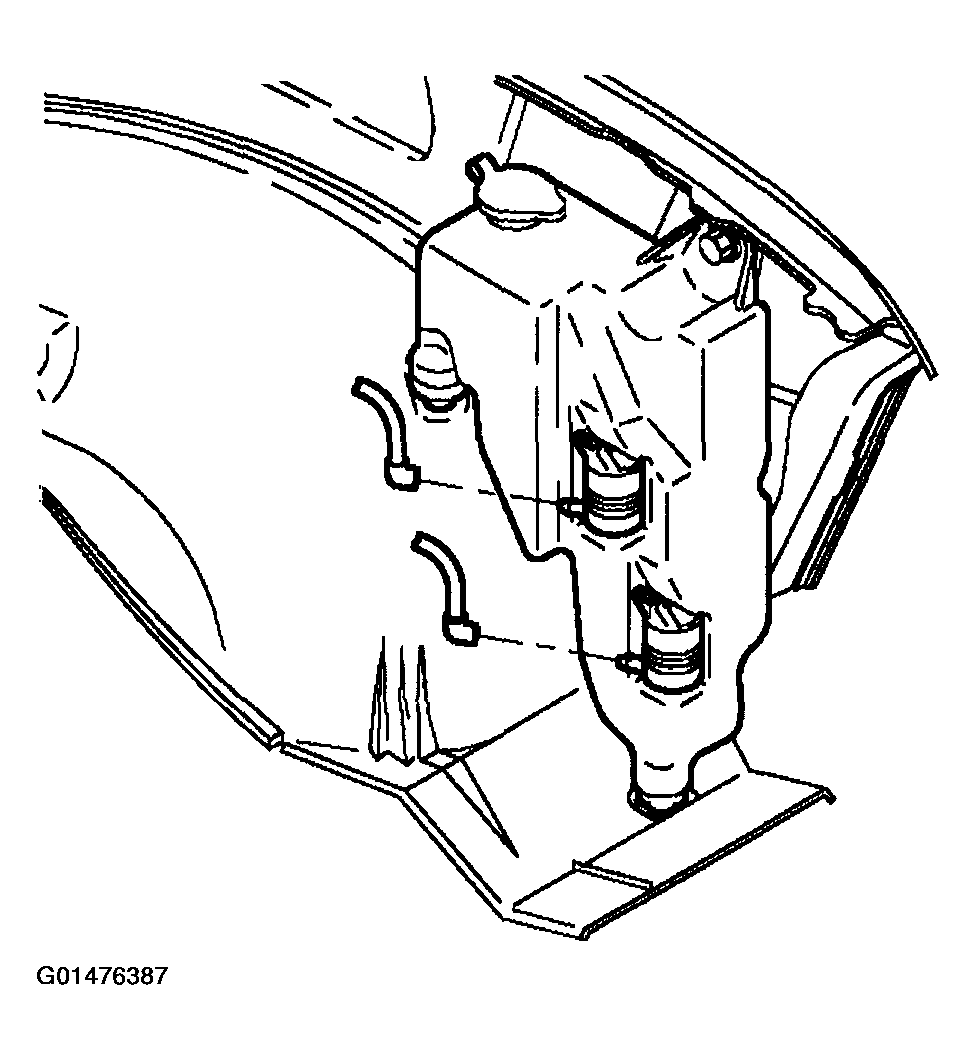

    Fig 1: Disconnecting Hoses From Washer Pumps
    G01476387Courtesy of GENERAL MOTORS CORP.
  5. Remove the screw retaining the solvent container to the vehicle.
  6. Remove the solvent container from the vehicle.

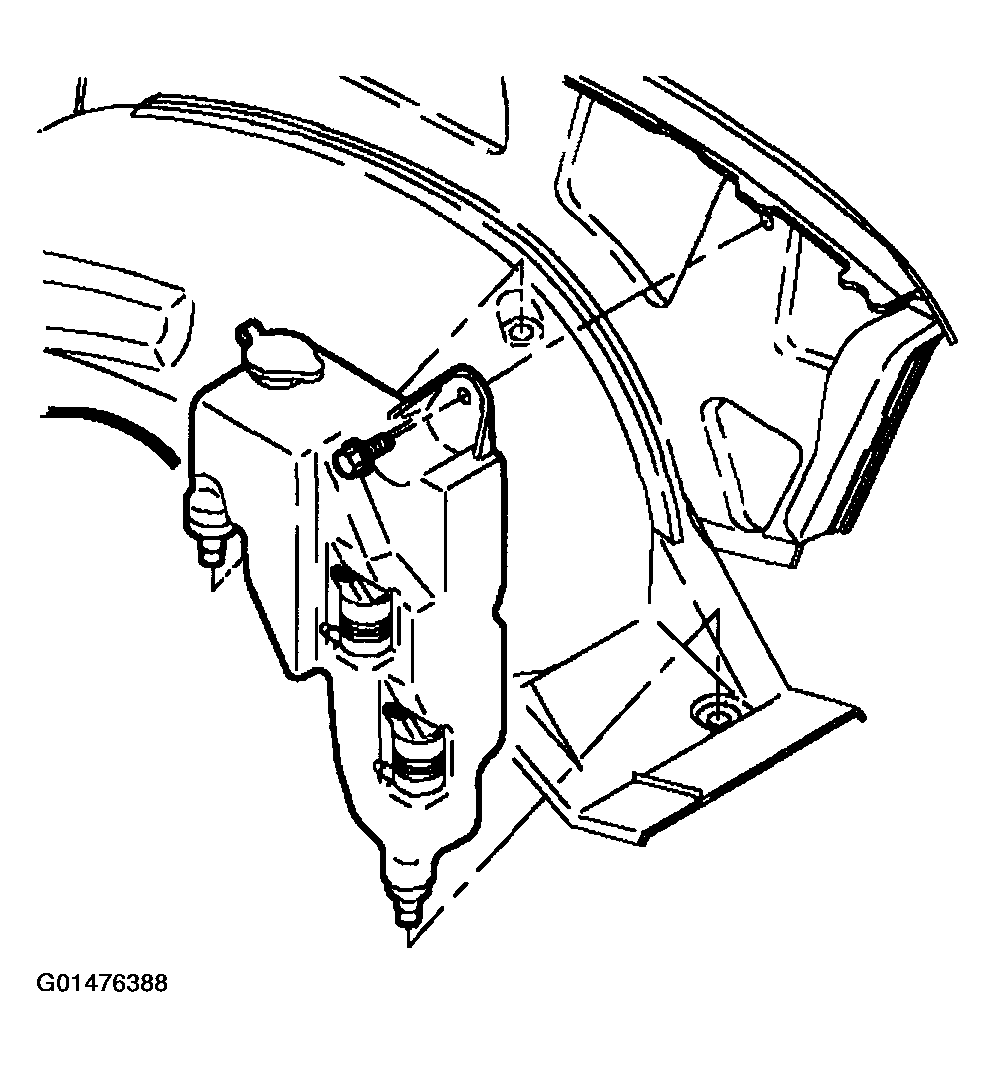

    Fig 2: Removing Solvent Container From Vehicle
    G01476388Courtesy of GENERAL MOTORS CORP.
  7. Remove the washer pumps and grommets from the solvent container.

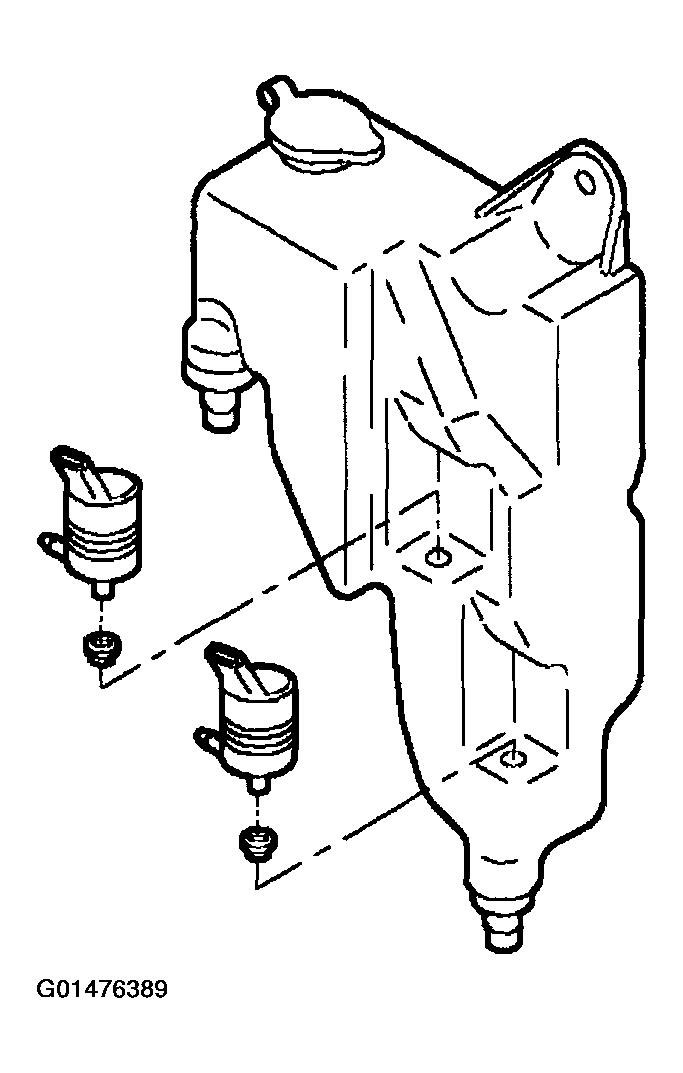

    Fig 3: Removing Washer Pumps & Grommets From Solvent Container
    G01476389Courtesy of GENERAL MOTORS CORP.
