Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Disconnect the washer hose from the nozzle.
  3. Compress tabs on the bottom of the nozzle to remove.

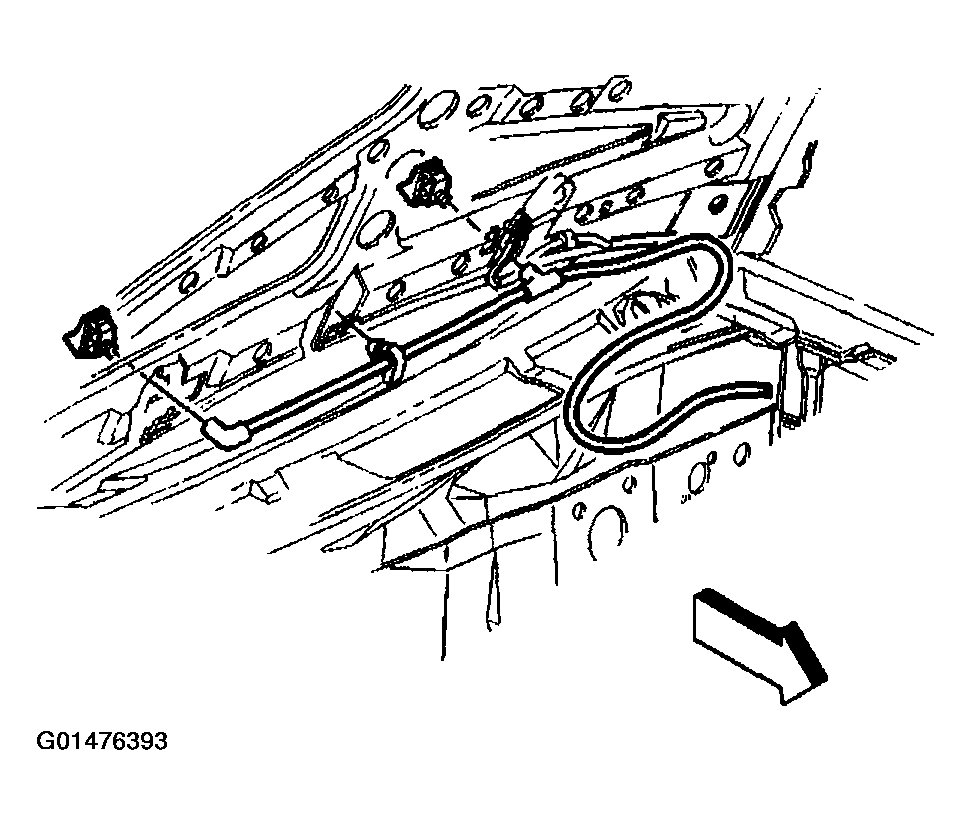

    Fig 1: Disconnecting Washer Hose From Nozzle
    G01476393Courtesy of GENERAL MOTORS CORP.
