Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the hood.
Remove the hose from the nozzles.
Remove the hose clip from the hood.

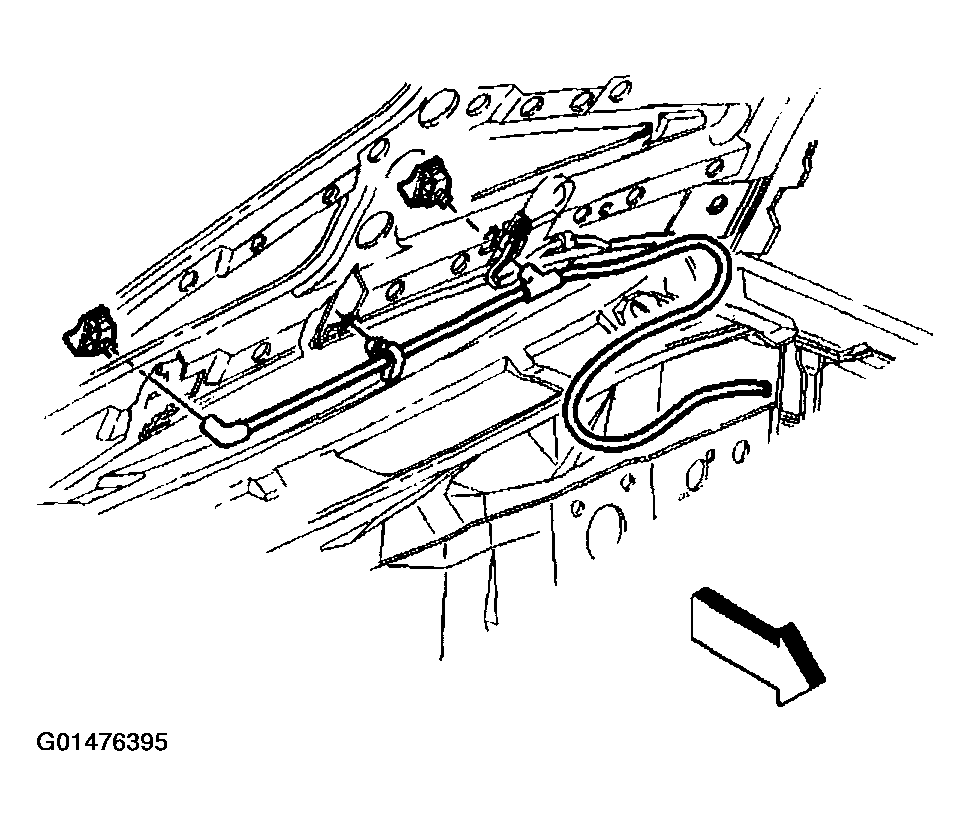

Fig 1: Removing Hose From Nozzles
Courtesy of GENERAL MOTORS CORP.
Disconnect the hose from the pump.
Remove the hose.

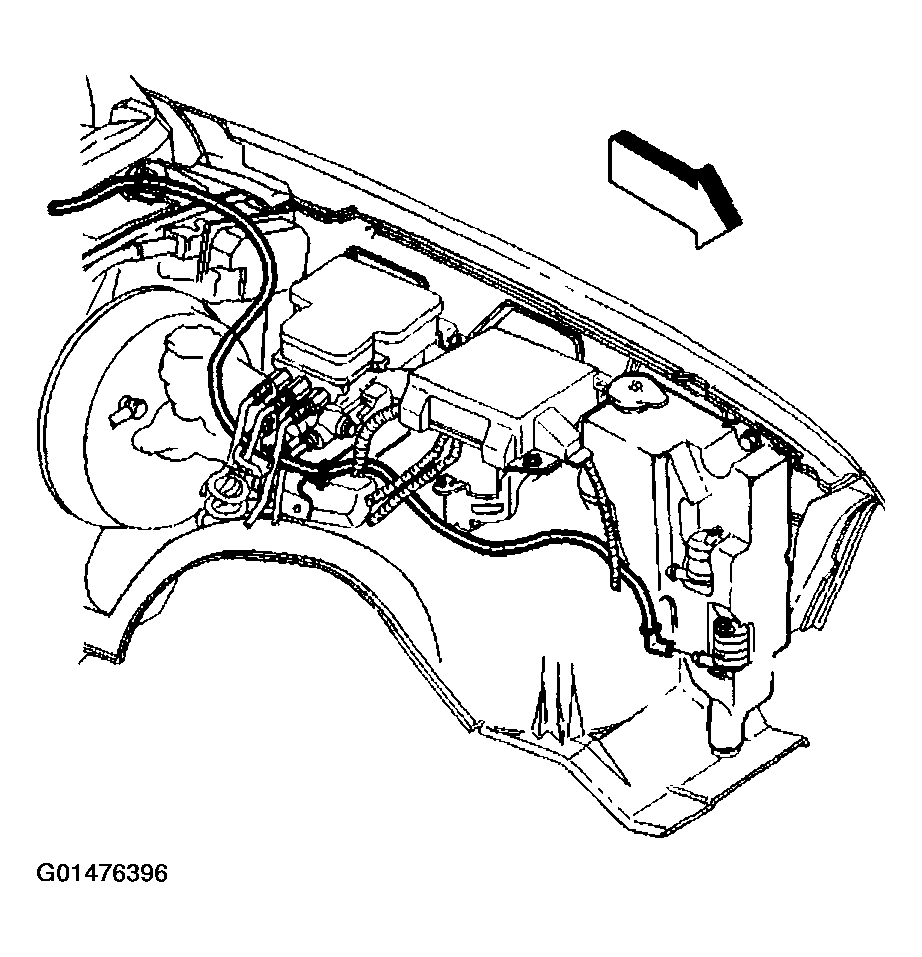

Fig 2: Disconnecting Hose From Pump
Courtesy of GENERAL MOTORS CORP.
