Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hose to the vehicle.
  2. Route the hose (1) out though the bulkhead.
  3. Route the hose along the body harness (2), and tape the hose to the body harness with 3 wraps of electrical tape every 100 mm (4 in).

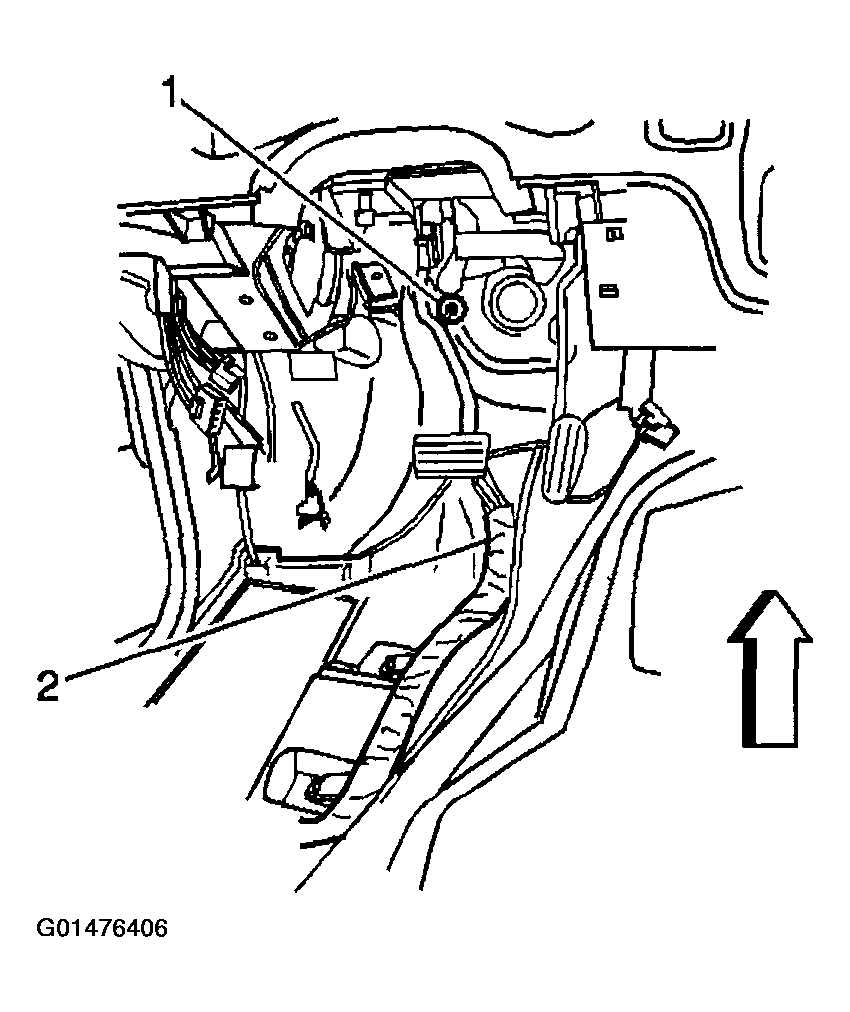

    Fig 1: Installing Hose To Vehicle
    G01476406Courtesy of GENERAL MOTORS CORP.
  4. Seat the hose grommet (2) into the bulkhead.
  5. Remove the plug from the rear washer pump nozzle.
  6. Connect the hose (1) to the rear washer pump.
  7. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT in Engine Controls.

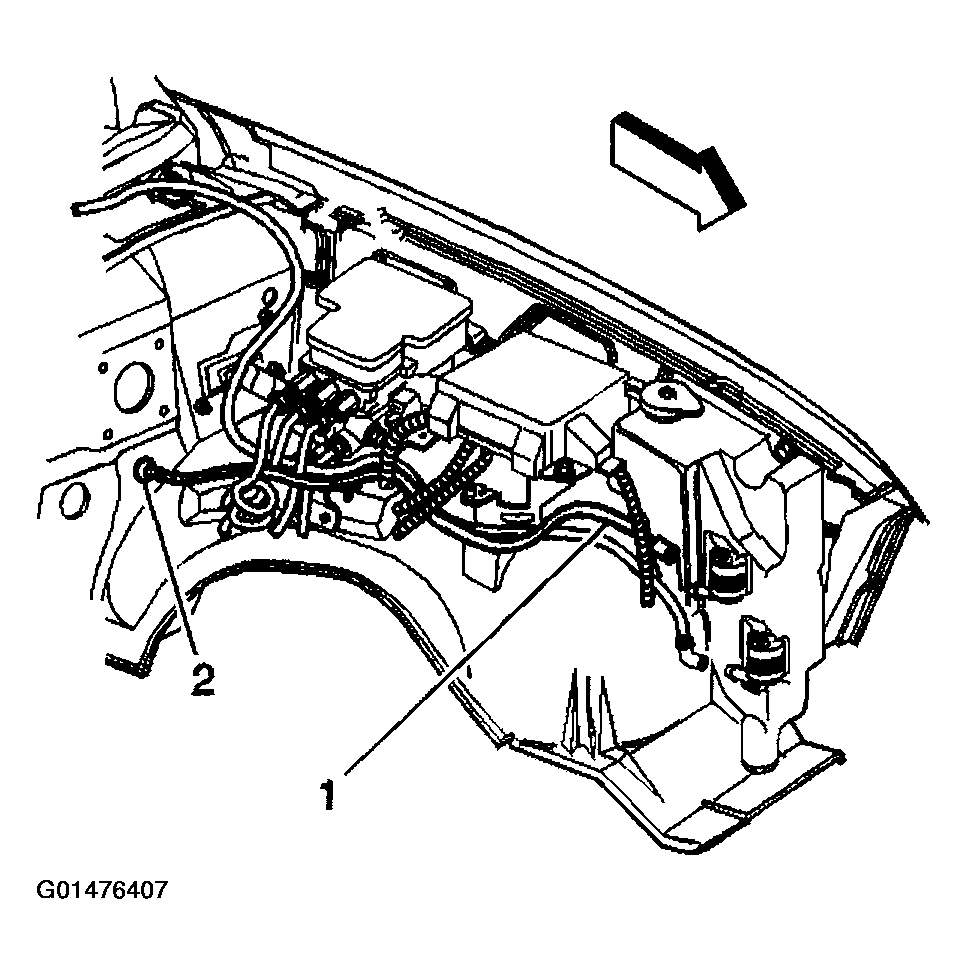

    Fig 2: Connecting Hose To Rear Washer Pump
    G01476407Courtesy of GENERAL MOTORS CORP.
  8. Connect the washer hose connection (1) at the endgate.
  9. Install the carpet. Refer to MAT/CARPET REPLACEMENT -- FRONT FLOOR (EXTENDED CAB) or MAT/CARPET REPLACEMENT -- FRONT FLOOR (UTILITY) and CARPET REPLACEMENT -- REAR in Interior Trim.
  10. Install the left hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT -- LEFT HINGE PILLAR in Interior Trim.
  11. Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT -- BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (4-DOOR UTILITY) orTRIM PANEL REPLACEMENT -- BODY SIDE (CREW CAB) in Interior Trim.
  12. Install the left front and left rear door sill plates.

    Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.

  13. Install the endgate/liftgate door sill plate. Refer to DOOR SILL PLATE REPLACEMENT -- END GATE or DOOR SILL PLATE REPLACEMENT -- LIFT GATE in Interior Trim.
  14. Install the rear seat. Refer to SEAT REPLACEMENT -- REAR (2-DOOR UTILITY) or SEAT REPLACEMENT -- REAR (4-DOOR UTILITY) or SEAT REPLACEMENT -- REAR (CREW CAB) in Seats.
  15. Install the left front seat. Refer to SEAT REPLACEMENT -- BUCKET in Seats.

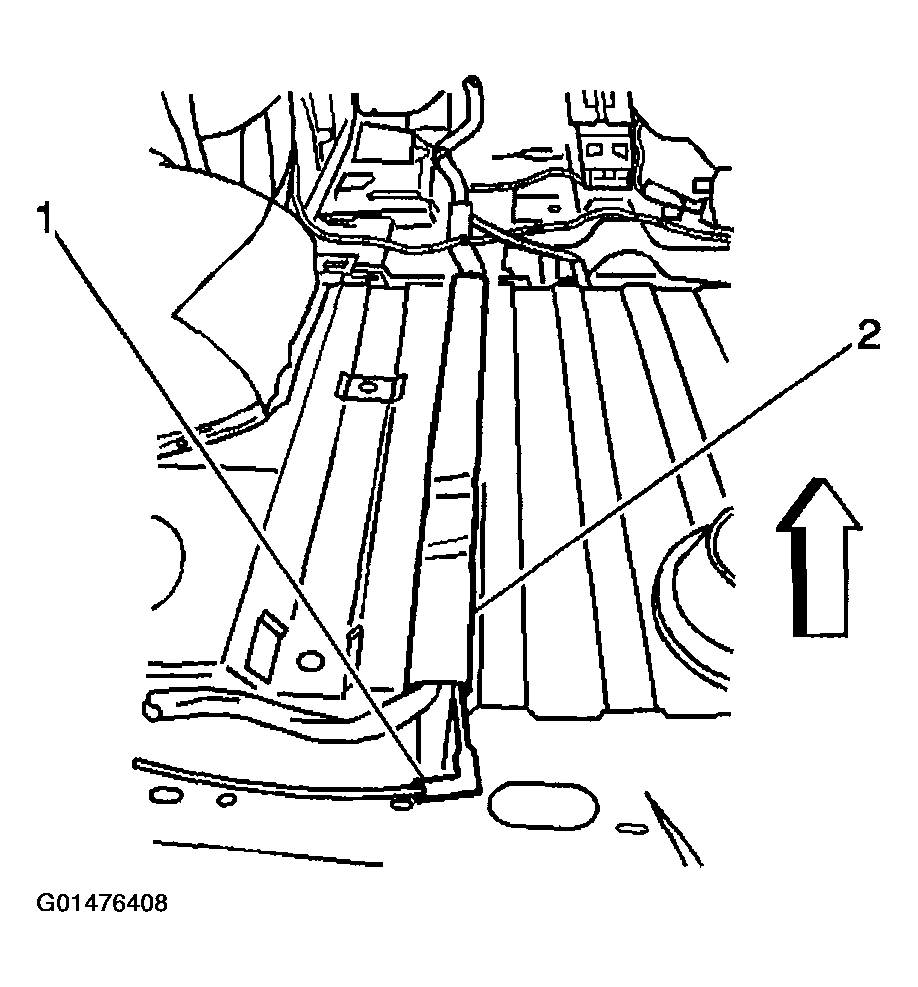

    Fig 3: Connecting Washer Hose Connection At Endgate
    G01476408Courtesy of GENERAL MOTORS CORP.
