Wipers Inoperative - All Modes

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

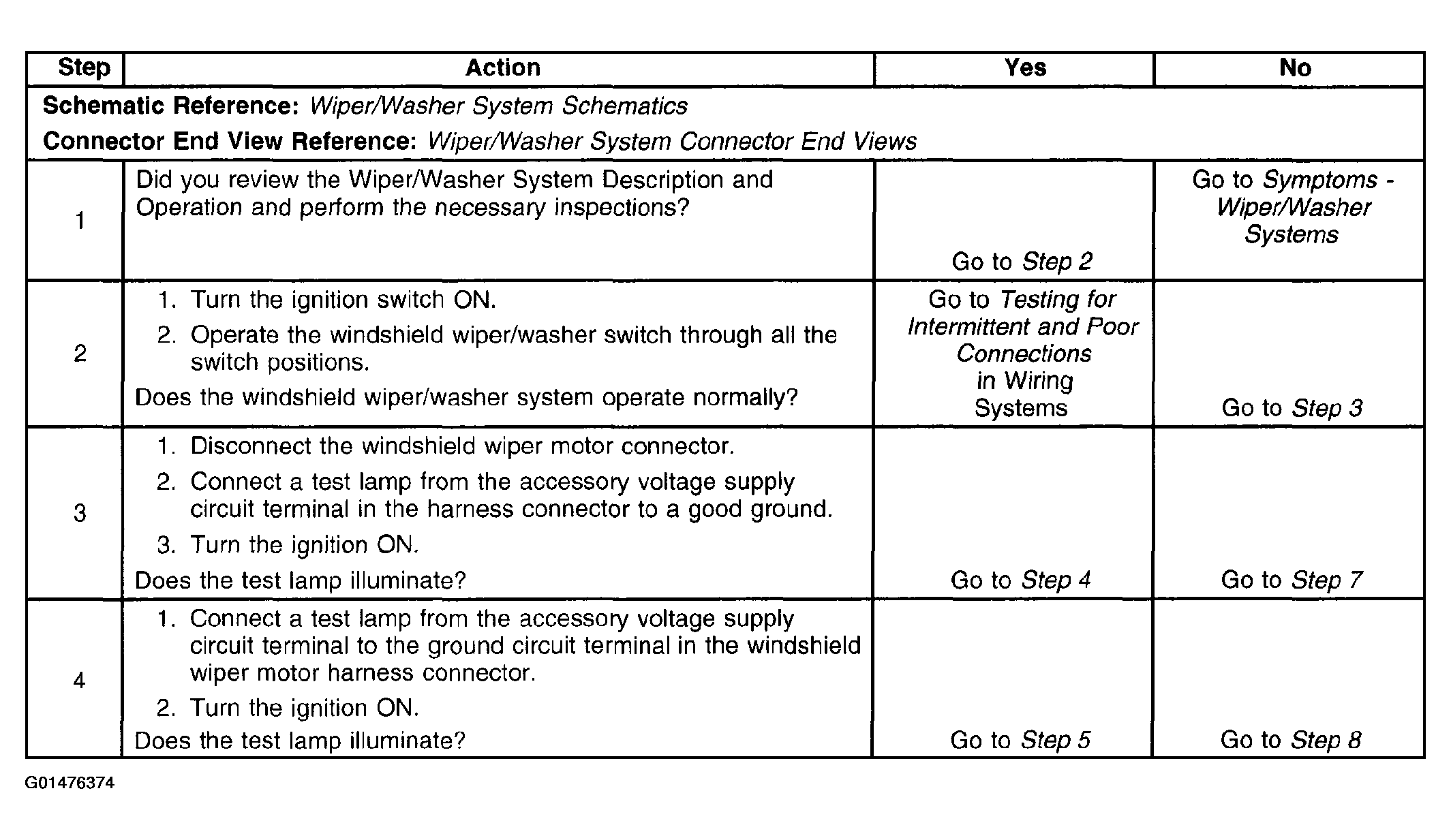

Fig 1: Wipers Inoperative - All Modes (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

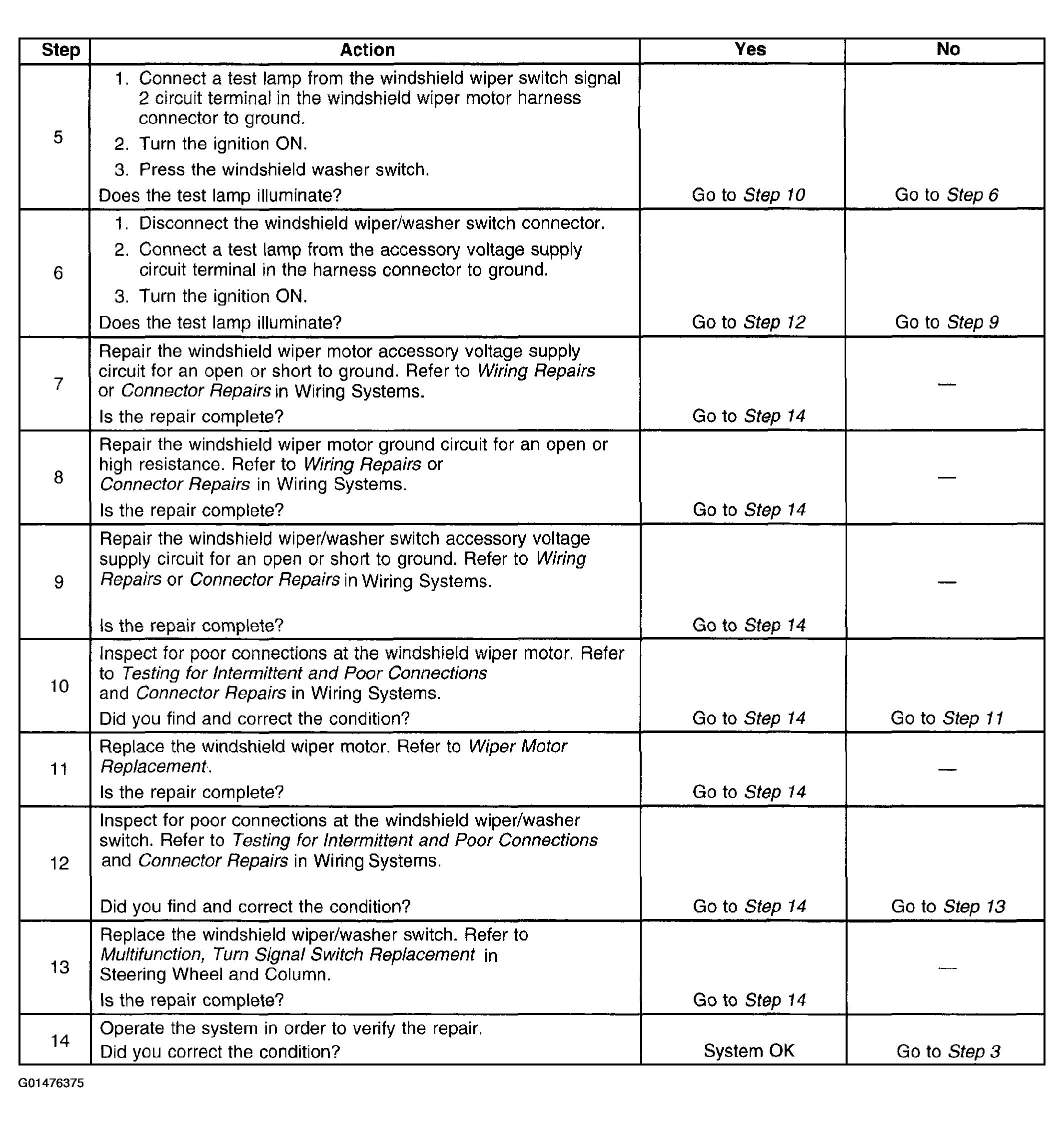

Fig 2: Wipers Inoperative - All Modes (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
