Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate or liftgate.
  2. Remove the screws that retain the tail lamp assembly to the vehicle.
  3. Rotate the bulb sockets 1/4 turn counterclockwise in order to remove the bulb sockets from the tail lamp assembly.
  4. Remove the bulbs from the sockets.

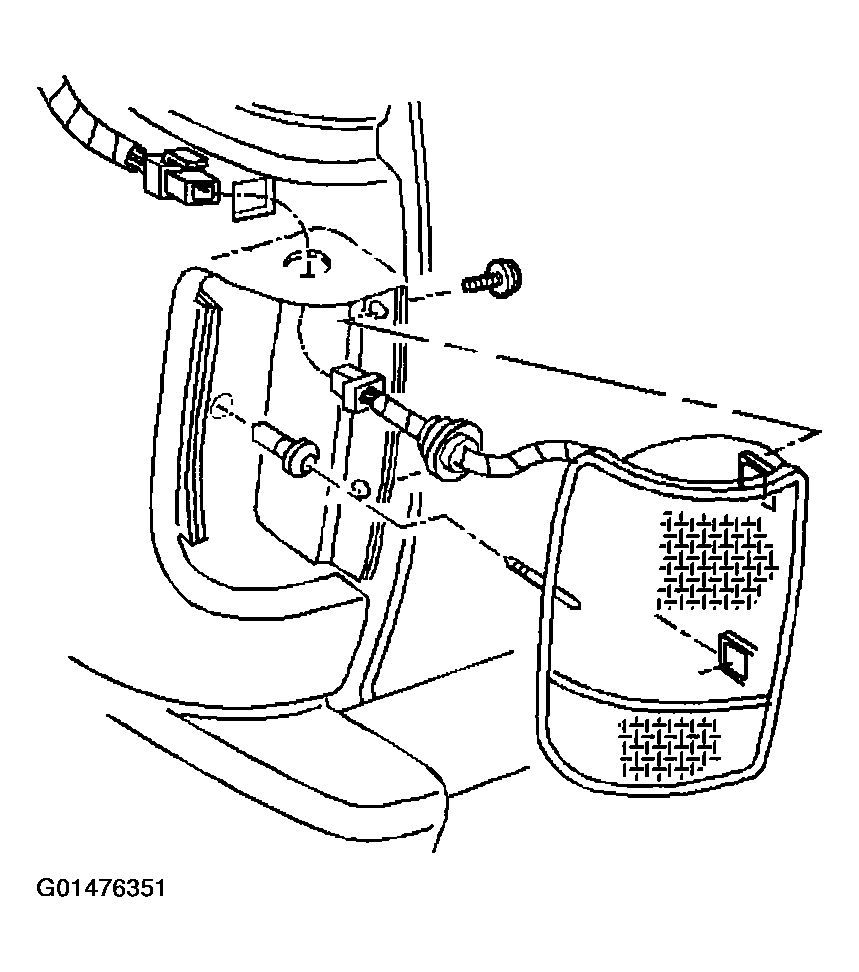

    Fig 1: Removing Screws That Retaining Tail Lamp Assembly To Vehicle
    G01476351Courtesy of GENERAL MOTORS CORP.
