Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license plate lamp to the vehicle.
  2. Connect the electrical connector.
  3. Install the bulb to the socket.
  4. Rotate the bulb and socket 1/4 turn clockwise in order to install the bulb and socket to the license plate lamp.
  5. Install the license plate lamp to the license plate bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the screws that retain the license plate lamp to the license plate bracket.

    Tighten

    Tighten the screws to 1.4 N.m (12 lb in).

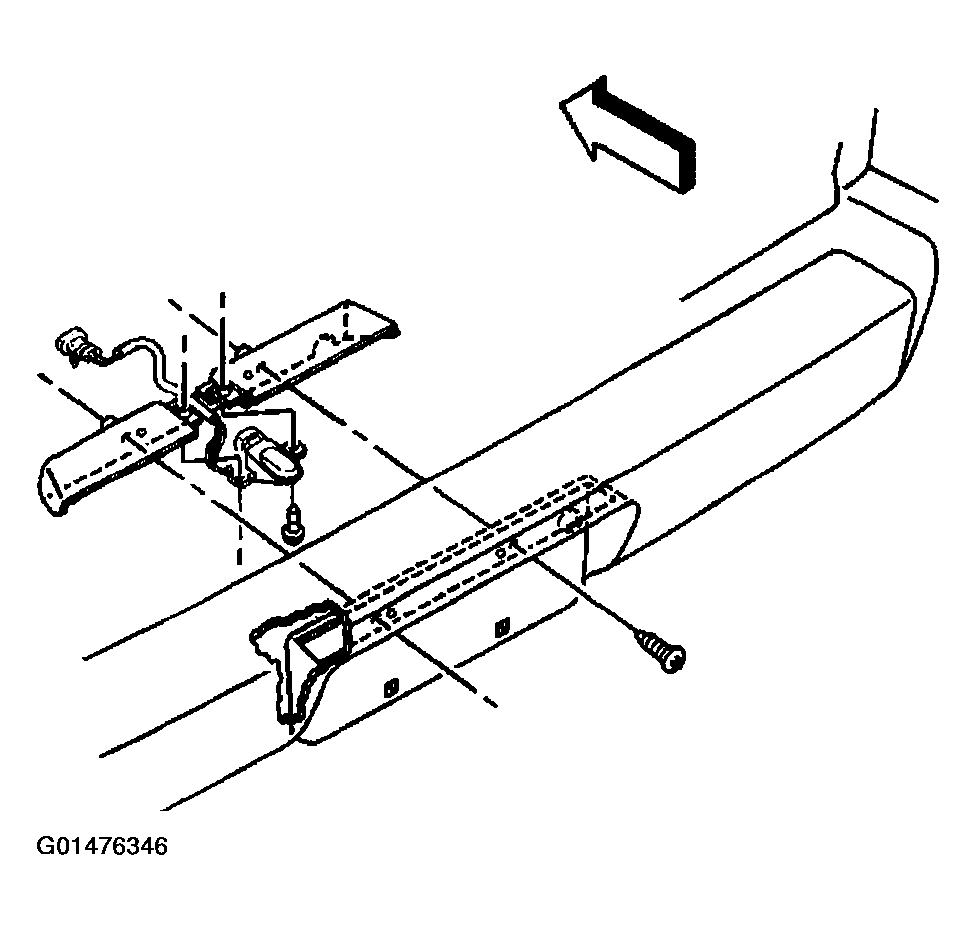

    Fig 1: Installing License Plate Lamp To Vehicle
    G01476346Courtesy of GENERAL MOTORS CORP.
