Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the headlamp switch is in the OFF position.
  2. Ensure that the ignition switch is in the LOCK position.
  3. Release the lamp's retainer from the rear bumper by pulling the lamp up and tilting the bottom of the lamp away from the bumper.
  4. Remove the lamp from the rear bumper by rotating it clockwise or counterclockwise

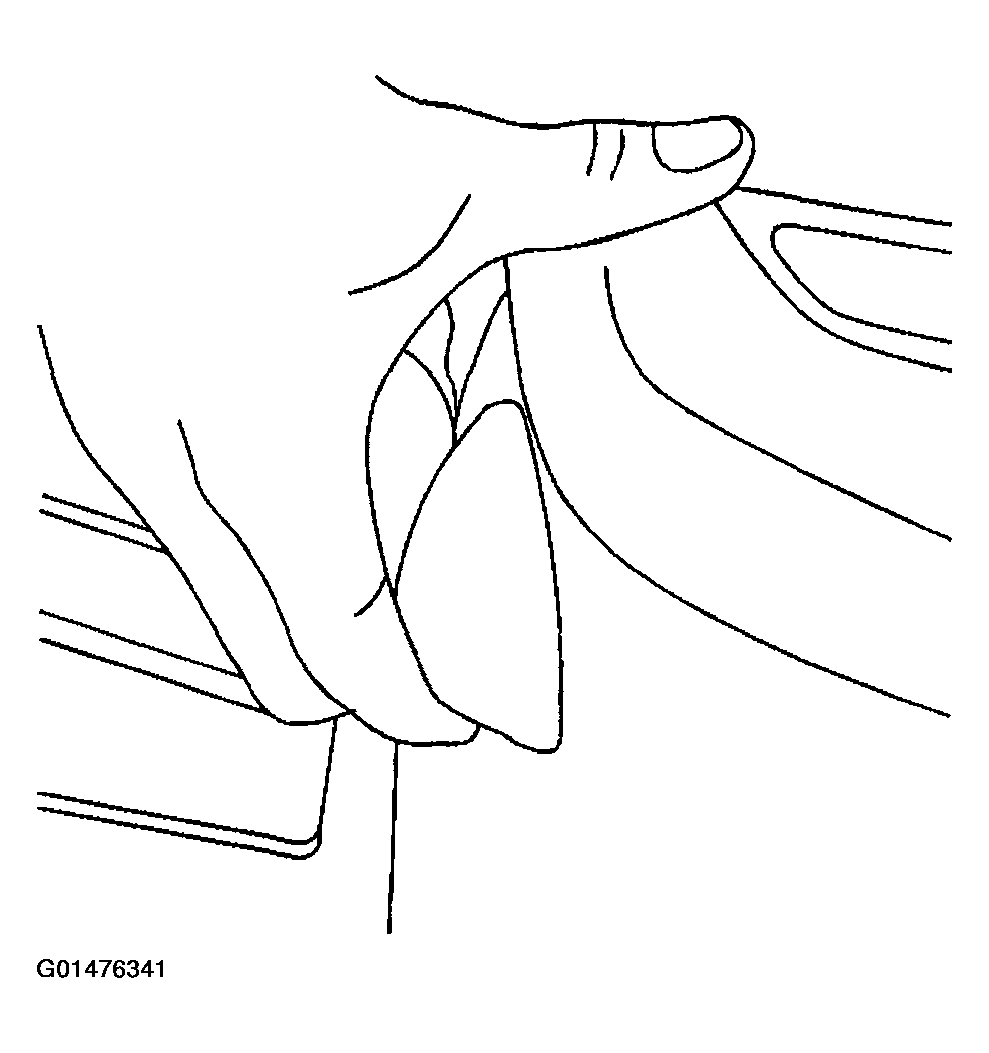

    Fig 1: Releasing Lamp'S Retainer From Rear Bumper
    G01476341Courtesy of GENERAL MOTORS CORP.
  5. Rotate the bulb socket 1/4 turn counterclockwise in order to remove the socket from the license plate lamp assembly.
  6. Remove the bulb from the socket.
  7. Remove the license plate lamp from the bumper.

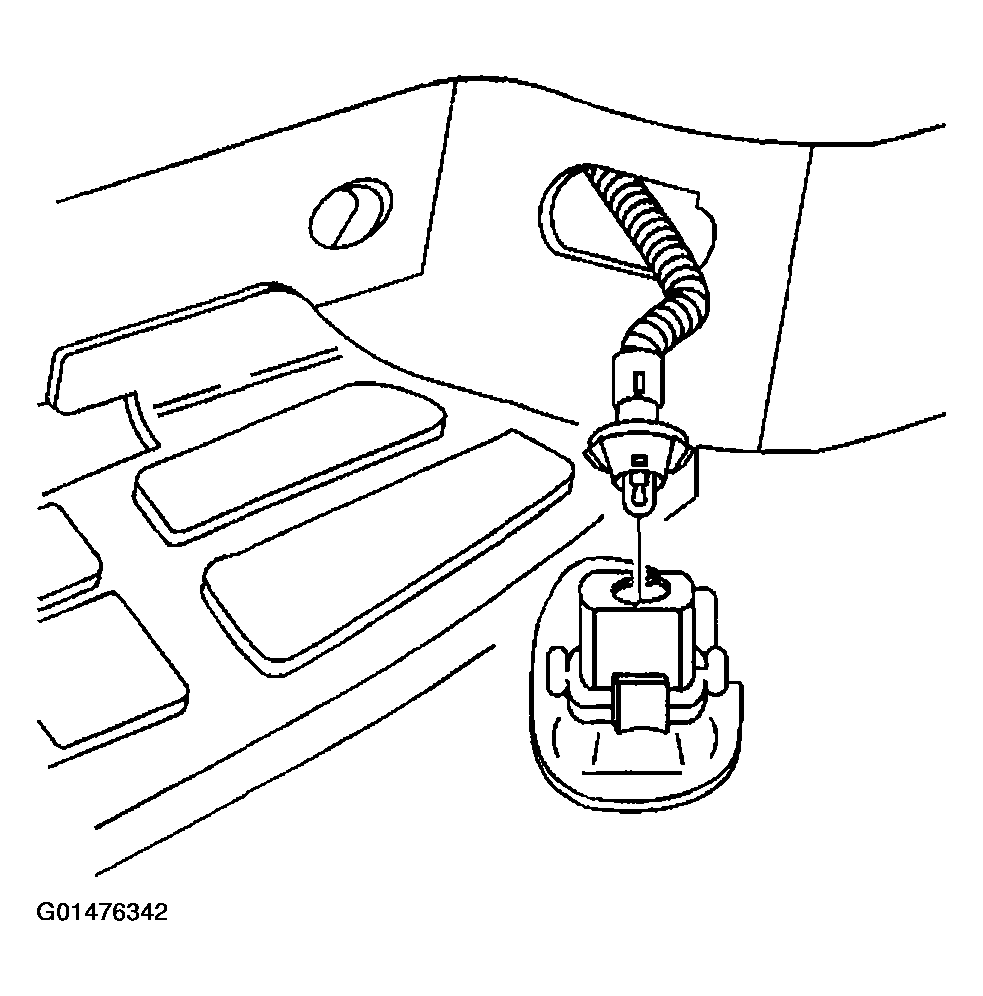

    Fig 2: Removing License Plate Lamp From Bumper
    G01476342Courtesy of GENERAL MOTORS CORP.
