Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the headlamp switch is in the OFF position.
  2. Ensure that the ignition switch is in the LOCK position.
  3. Rotate the bulb and socket 1/4 turn counterclockwise in order to remove the bulb and socket from the vehicle.
  4. Remove the bulb from the socket if being replaced.
  5. Remove the lens retaining clip from the license plate lamp.
  6. Remove the lens from the filler panel.

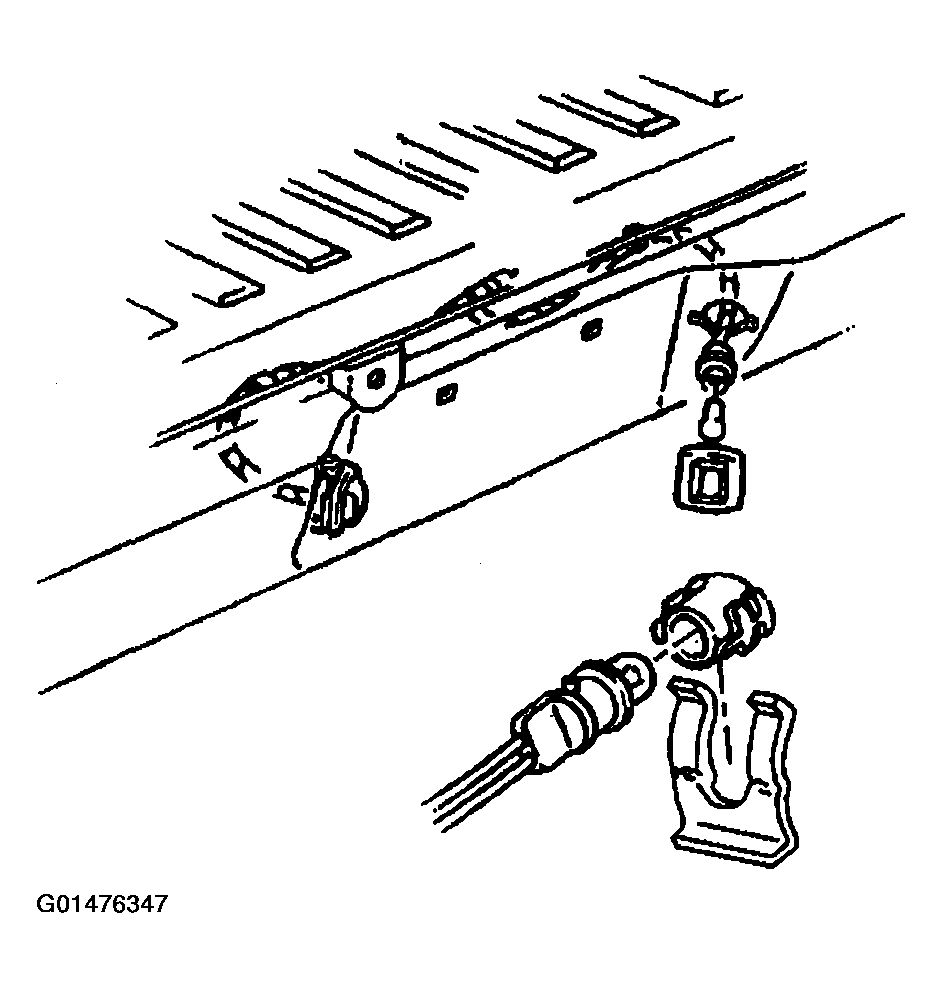

    Fig 1: Removing Lens Retaining Clip From License Plate Lamp
    G01476347Courtesy of GENERAL MOTORS CORP.
