Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the lens to the filler panel.
Install the lens retaining clip to the license plate lamp.
Install the bulb to the socket.
Rotate the bulb and socket 1/4 turn clockwise in order to install the bulb and socket to the license plate lamp.

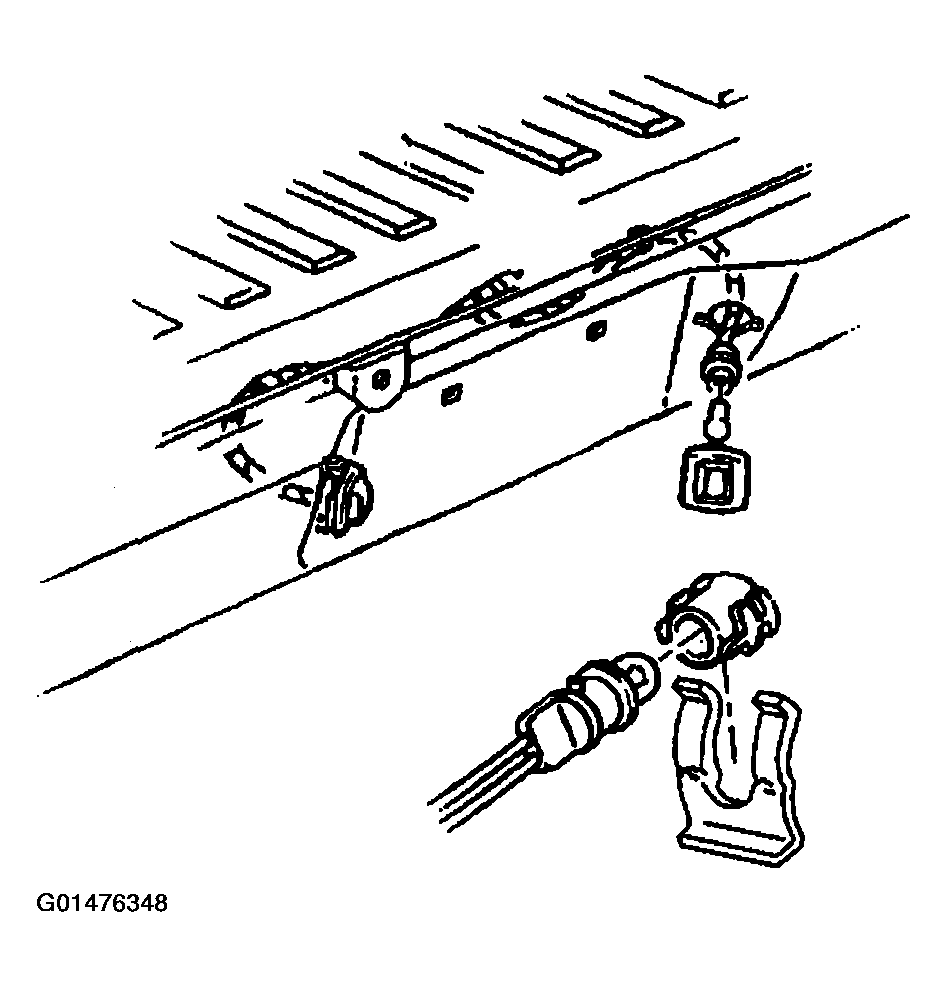

Fig 1: Installing Lens Retaining Clip To License Plate Lamp
Courtesy of GENERAL MOTORS CORP.
