Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the high mount stop lamp to the roof.
  2. Remove the high mount stop lamp from the vehicle.
  3. Disconnect the electrical connector.
  4. Pull the wiring harness connector through the hole in the roof and disconnect the electrical connector.

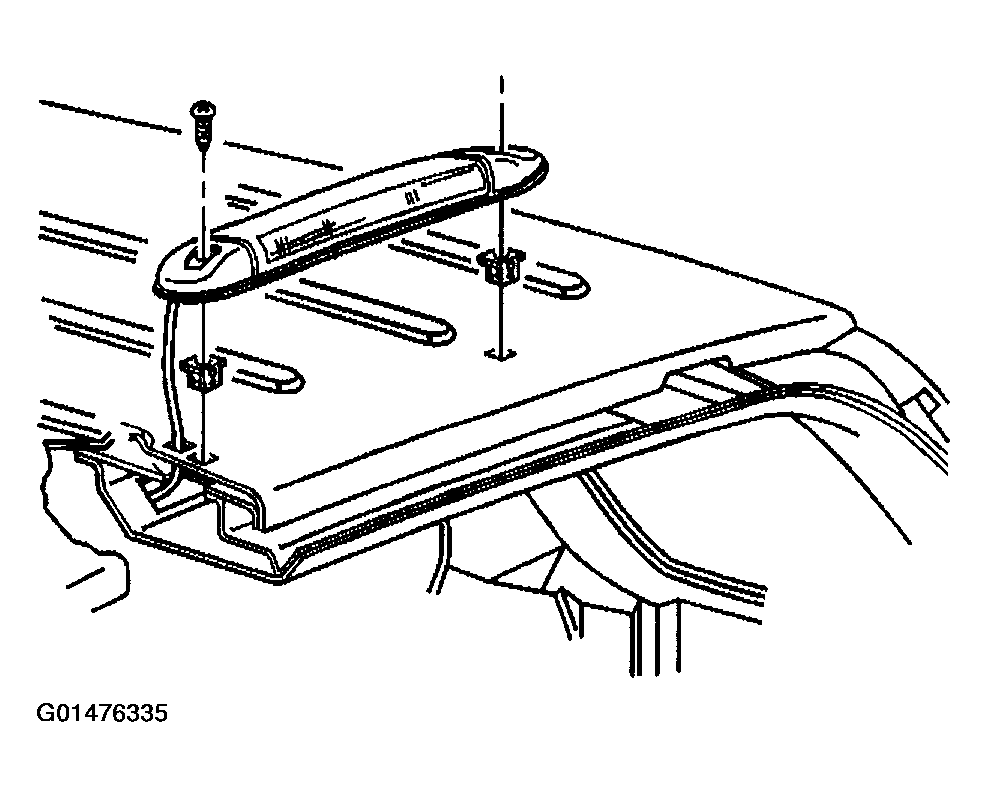

    Fig 1: Removing High Mount Stop Lamp From Vehicle
    G01476335Courtesy of GENERAL MOTORS CORP.
