Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wiring harness connector to the high mounted stop lamp.
  2. Install the high mount stop lamp to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws that retain the high mount stop lamp to the roof.

    Tighten

    Tighten the high mount stop lamp screws to 1.4 N.m (12 lb in).

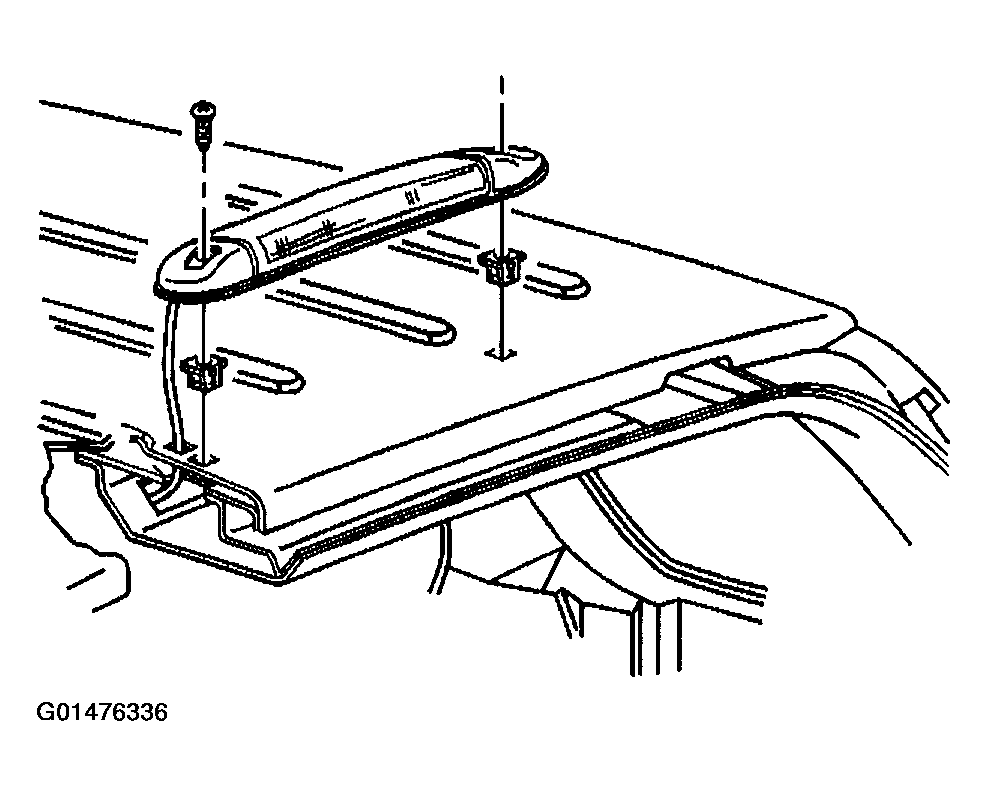

    Fig 1: Installing High Mount Stop Lamp To Vehicle
    G01476336Courtesy of GENERAL MOTORS CORP.
