Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Squeeze the release tabs in order to remove the dome lamp lens.
  3. Remove the dome lamp bulb.
  4. Remove the screws that retain the dome lamp base to the high mount stop lamp from inside the vehicle.
  5. Remove the dome lamp base from the vehicle.
  6. Disconnect the body wiring harness from the dome lamp/high mount stop lamp.
  7. Remove the high mount stop lamp from the vehicle.

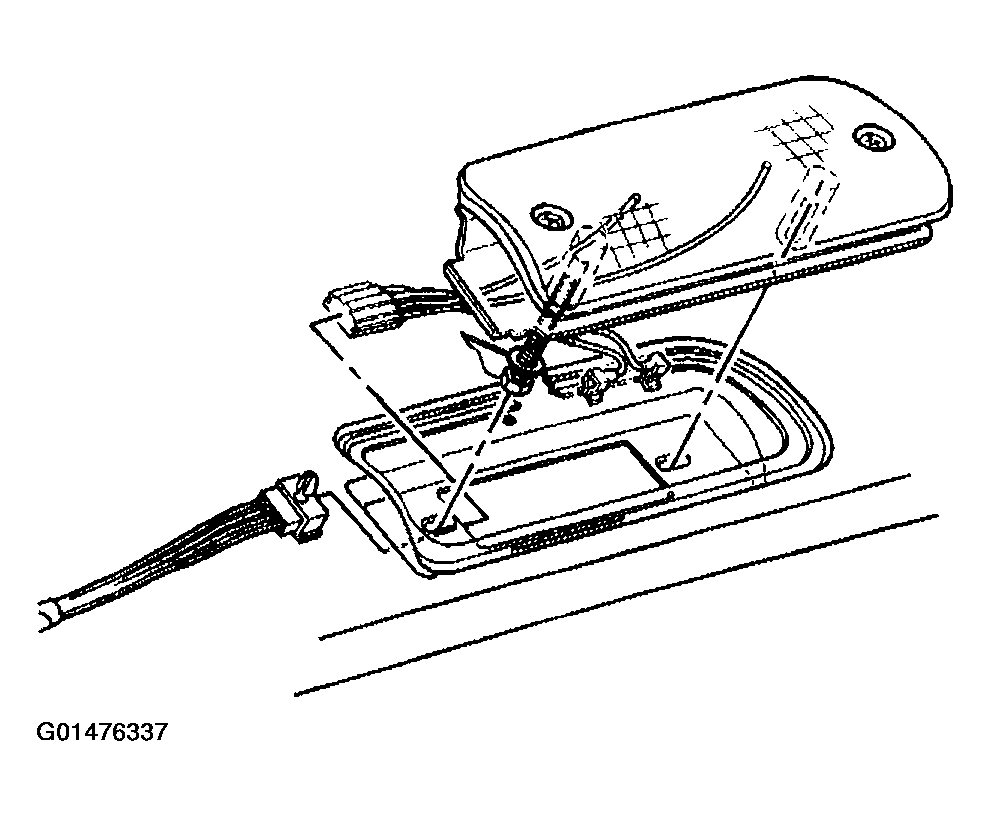

    Fig 1: Removing High Mount Stop Lamp From Vehicle
    G01476337Courtesy of GENERAL MOTORS CORP.
