Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the high mount stop lamp to the vehicle.
  2. Connect the body wiring harness to the dome lamp/high mount stop lamp.
  3. Install the dome lamp base to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws that retain the dome lamp base to the high mount stop lamp from inside the vehicle.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  5. Install the dome lamp bulb.
  6. Squeeze the lens in order to install the dome lamp lens.
  7. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical

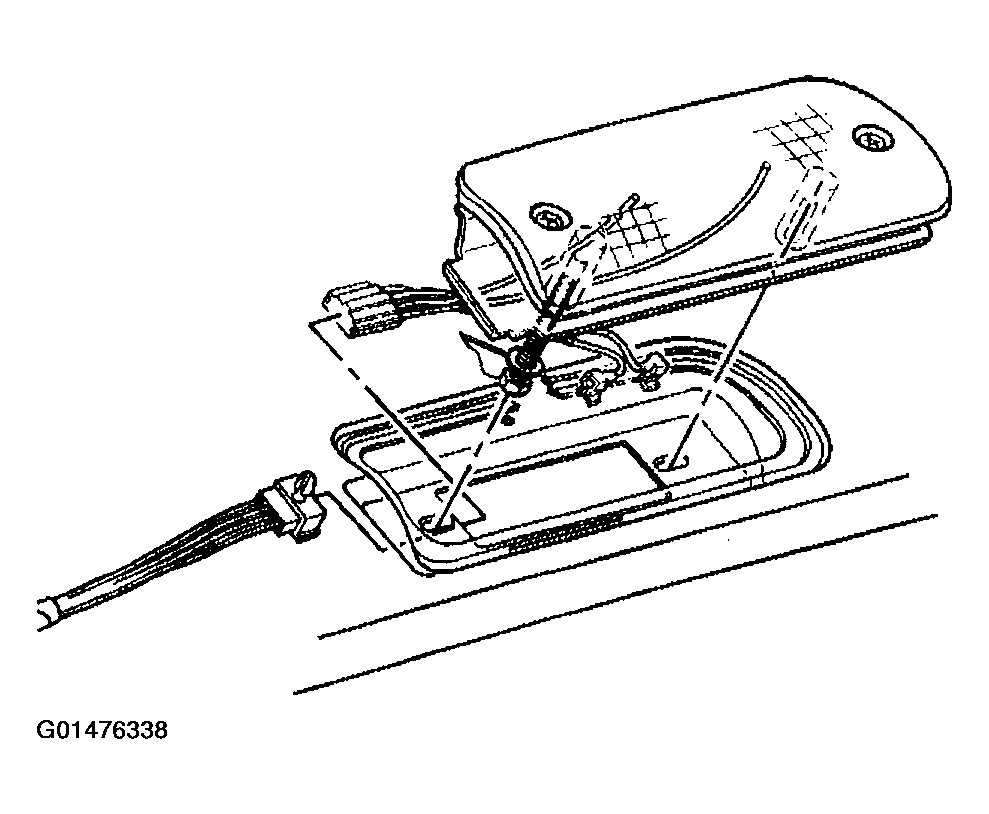

    Fig 1: Installing High Mount Stop Lamp To Vehicle
    G01476338Courtesy of GENERAL MOTORS CORP.
