Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  2. Remove the two screws that retain the headlamp leveling actuator plunger to the headlamp bracket.
  3. Rotate and remove the headlamp leveling actuator from the headlamp bracket.

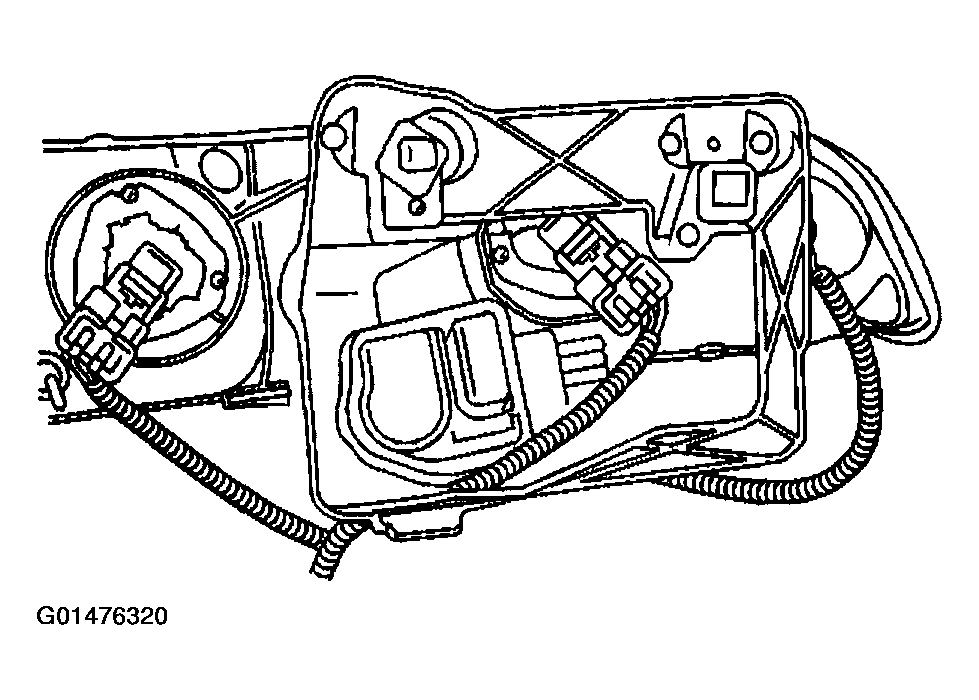

    Fig 1: Removing Headlamp Leveling Actuator From Headlamp Bracket
    G01476320Courtesy of GENERAL MOTORS CORP.
