Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the front fog lamp base.
  2. Install the front fog lamp to the turn signal lamp assembly.
  3. Install the front fog lamp adjustment screw.
  4. Install the turn signal lamp assembly with the front fog lamp to the grille.
  5. Install the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in Exterior Trim.
  6. Install the headlamp. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  7. Adjust the front fog lamp. Refer to FOG LAMP AIMING PROCEDURE .

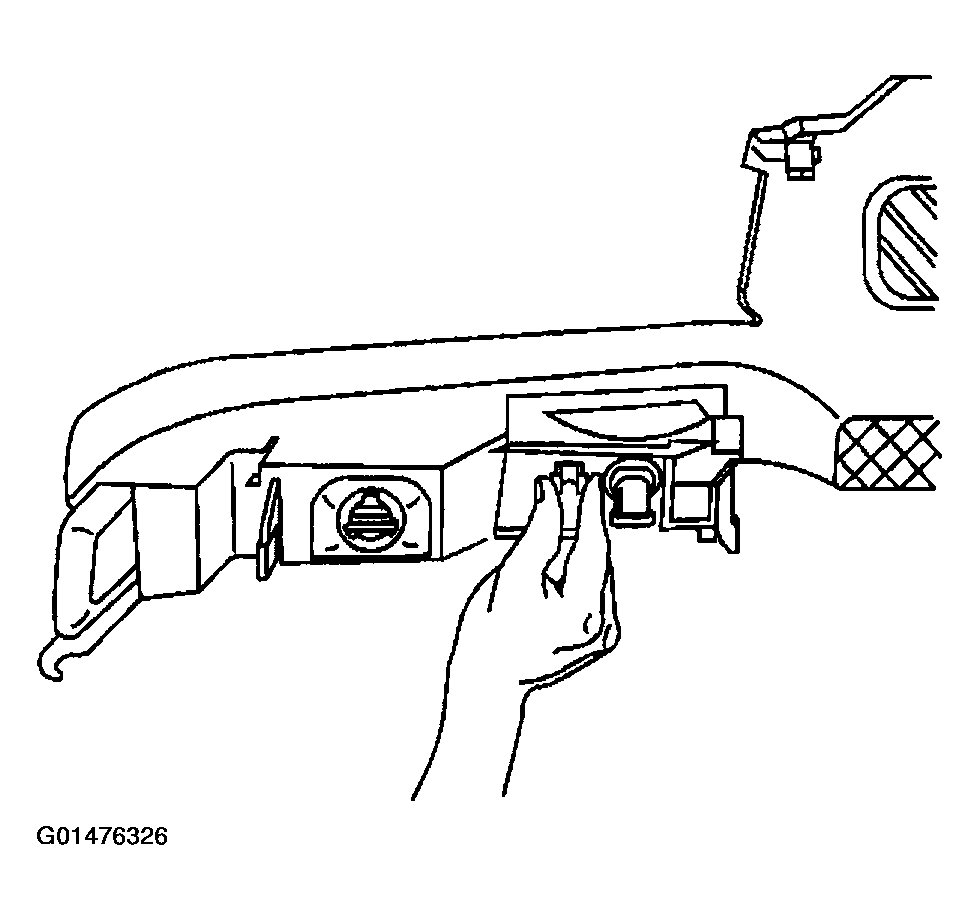

    Fig 1: Installing Bulb To Front Fog Lamp Base
    G01476326Courtesy of GENERAL MOTORS CORP.
