Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the headlamp switch is in the OFF position.
  2. Ensure that the ignition switch is in the LOCK position.
  3. Open the endgate or liftgate.
  4. Remove the screws that retain the tail lamp assembly to the vehicle.
  5. Rotate the fog lamp bulb socket 1/4 turn counterclockwise in order to remove the bulb socket from the tail lamp assembly.
  6. Remove the bulb from the socket.

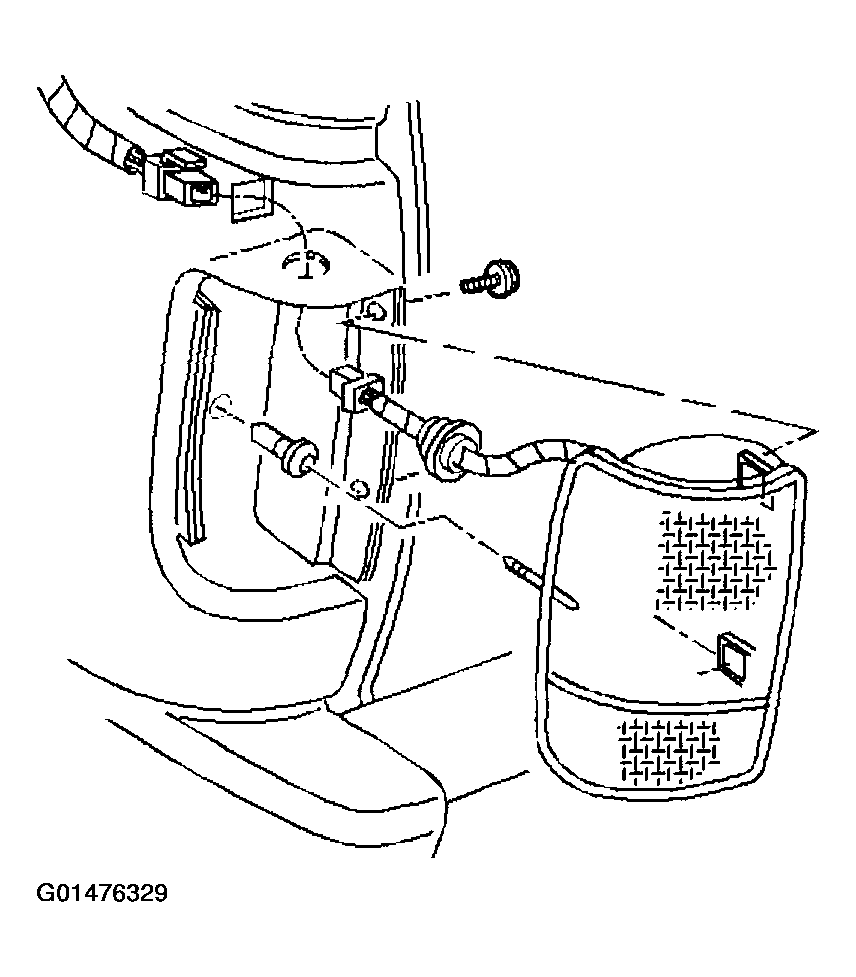

    Fig 1: Removing Tail Lamp Assembly To Vehicle Retaining Screws
    G01476329Courtesy of GENERAL MOTORS CORP.
