Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Install the bulb socket to the tail lamp assembly by rotating the socket 1/4 turn clockwise.
  3. Install the tail lamp assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws that retain the taillamp assembly to the vehicle.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

  5. Close the endgate or liftgate.

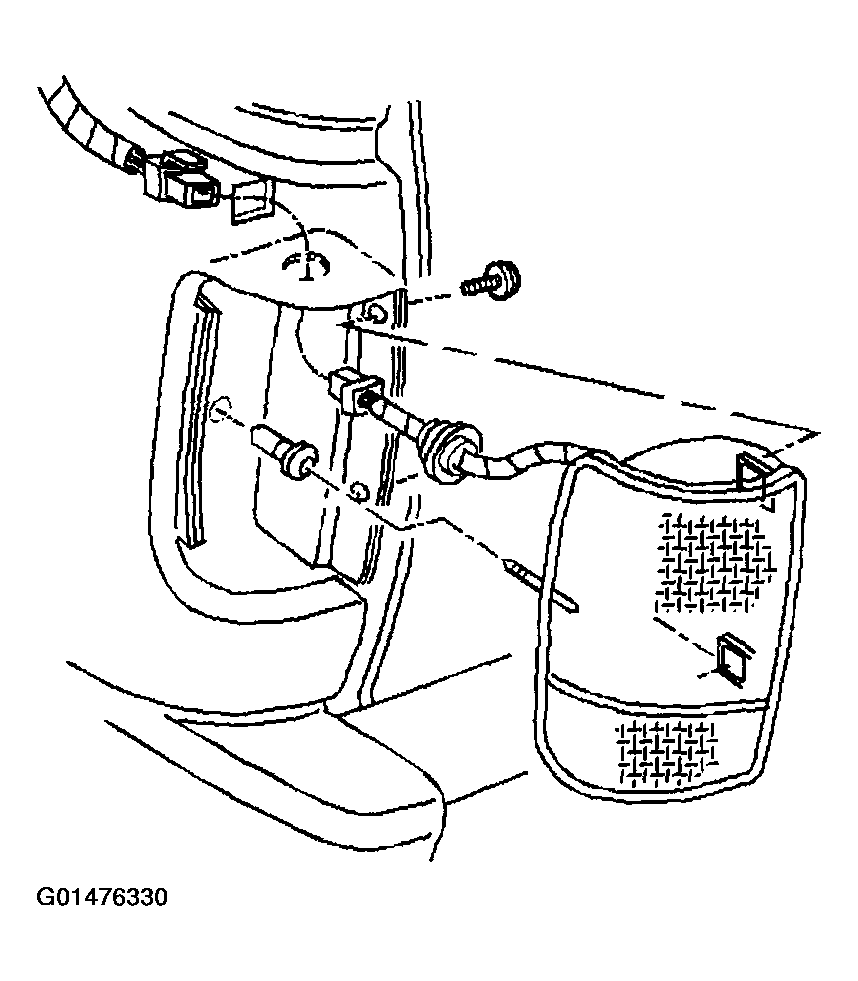

    Fig 1: Installing Tail Lamp Assembly To Vehicle Retaining Screws
    G01476330Courtesy of GENERAL MOTORS CORP.
