Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Ensure that the foglamp switch is in the OFF position.
  3. Disconnect the electrical connector.
  4. Remove the push-pins.
  5. Remove the adjustment screw.
  6. Remove the foglamp from the vehicle.

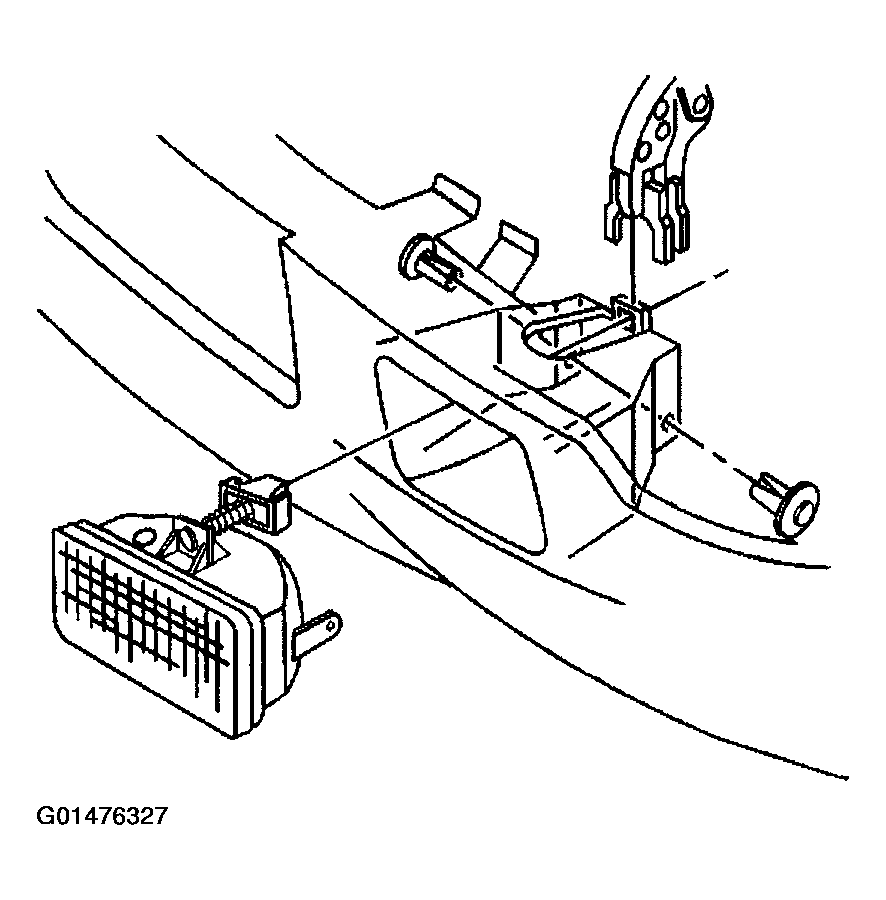

    Fig 1: Removing Foglamp From Vehicle
    G01476327Courtesy of GENERAL MOTORS CORP.
