Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical
  2. Use a flat bladed tool in order to remove the door jamb switch from the rear door hinge-pillar.
  3. Disconnect the electrical connector.

    Tape the wires to the body in order to prevent them from dropping into the rear door hinge-pillar.

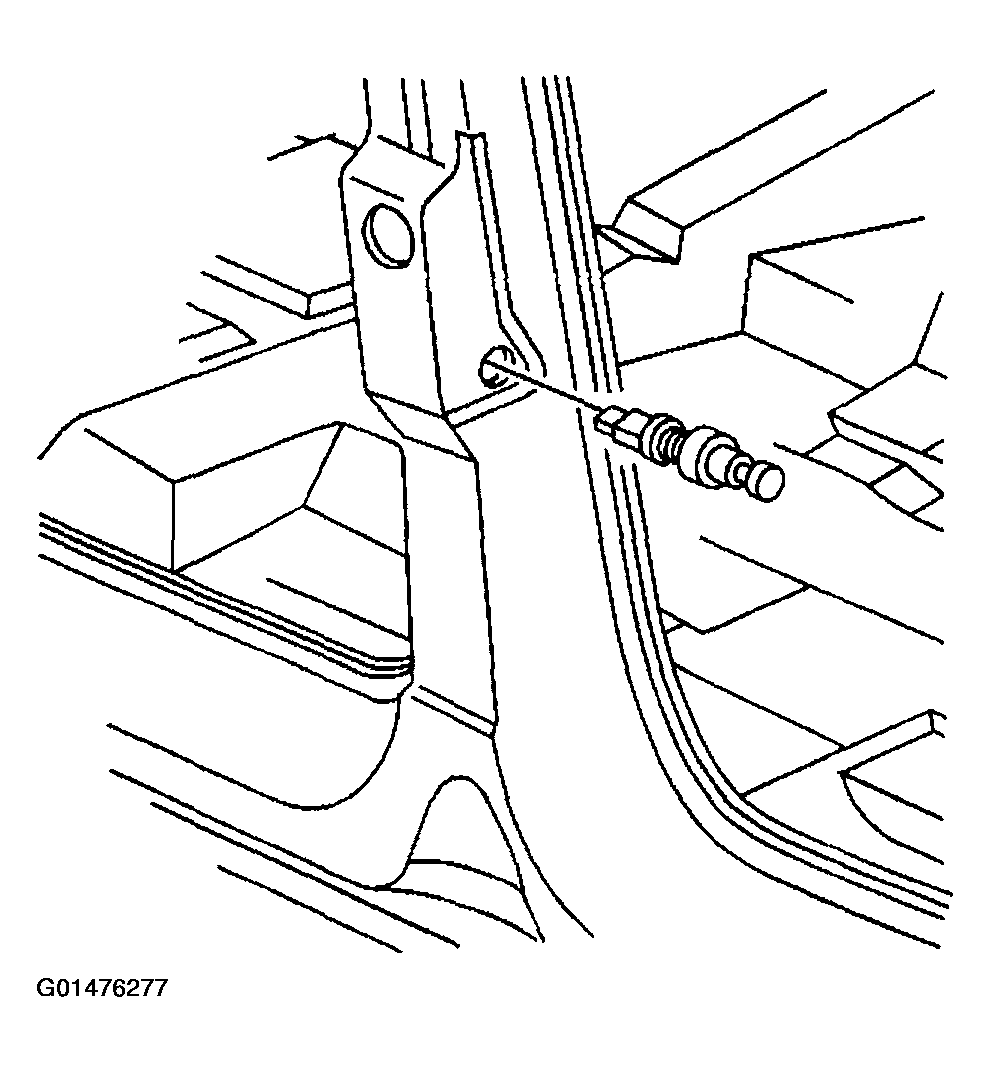

    Fig 1: Removing Door Jamb Switch From Rear Door Hinge-Pillar
    G01476277Courtesy of GENERAL MOTORS CORP.
