Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable.
  2. Remove the instrument panel sound insulator (right side only). Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in Instrument Panel, Gages and Console.
    Fig 1: Instrument Panel Sound Insulator - Right Side Only
    G01476273Courtesy of GENERAL MOTORS CORP.
  3. Remove the instrument panel sound insulator (left side only). Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages and Console.
  4. Reach up and disconnect the electrical connector.
  5. Squeeze the locking tabs in order to remove the door jamb switch from the vehicle.

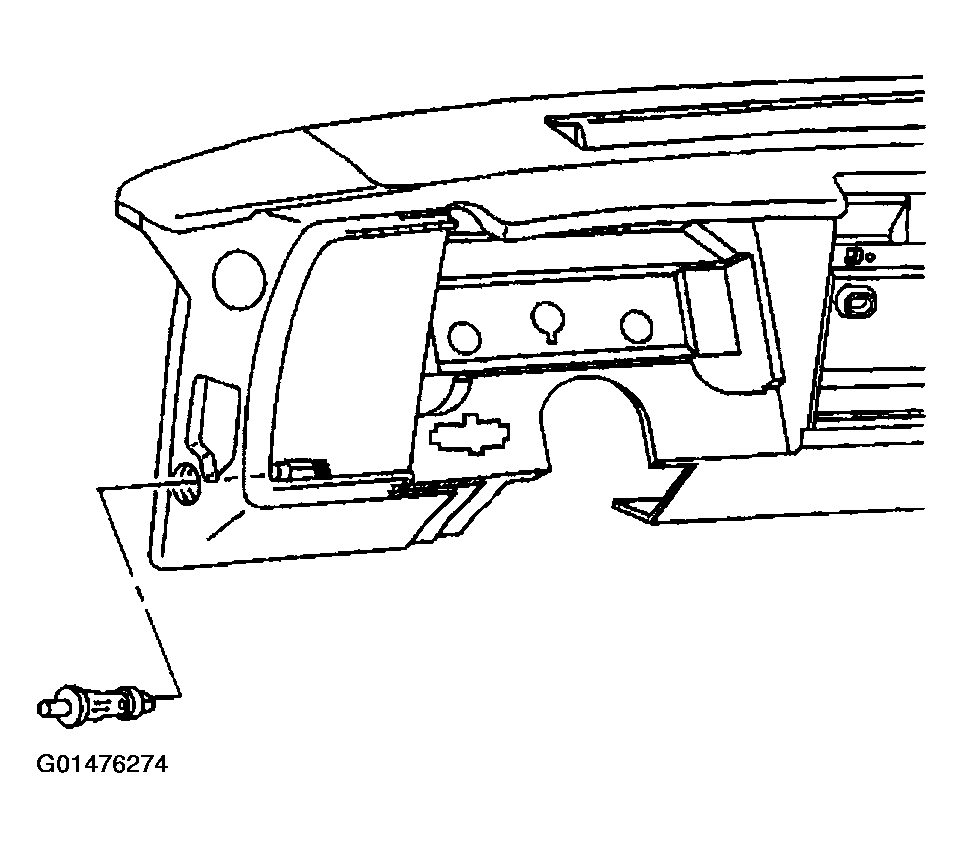

    Fig 2: Instrument Panel Sound Insulator - Left Side Only
    G01476274Courtesy of GENERAL MOTORS CORP.
