Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
On pickup models, the dome lamp is located on the roof panel above the rear glass.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
in Cautions and Notices.
- Disconnect the battery negative cable.

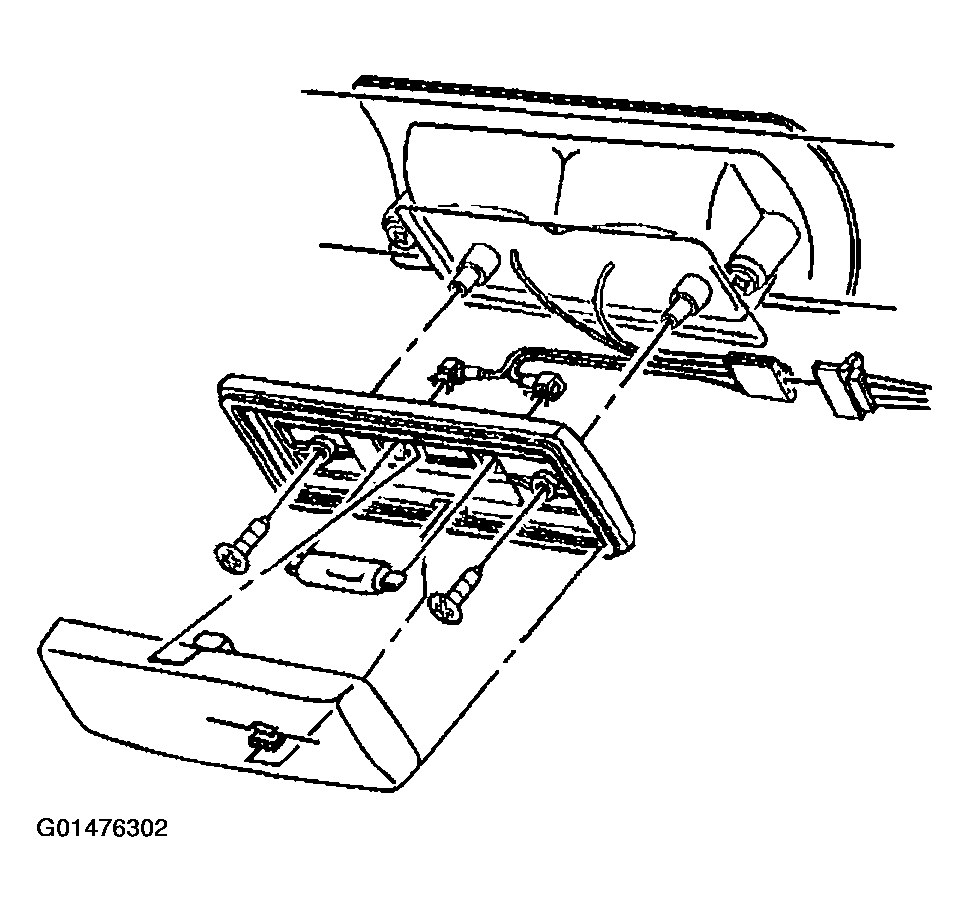

- Squeeze the dome lamp lens in order to remove the lens.
- Remove the dome lamp bulb.
- Remove the screws that retain the dome lamp base to the center high mount stoplamp from inside the vehicle.
- Remove the dome lamp base from the vehicle.
