Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connection to the DRL ambient light sensor.
Insert the sensor and turn counter-clockwise 1/4 turn in order to seat.

Fig 1: Inserting Sensor & Turning Counter-Clockwise 1/4 Turn To Seat
Courtesy of GENERAL MOTORS CORP.
Install the front speaker grille to the vehicle. Refer to SPEAKER REPLACEMENT -- FRONT in Entertainment.

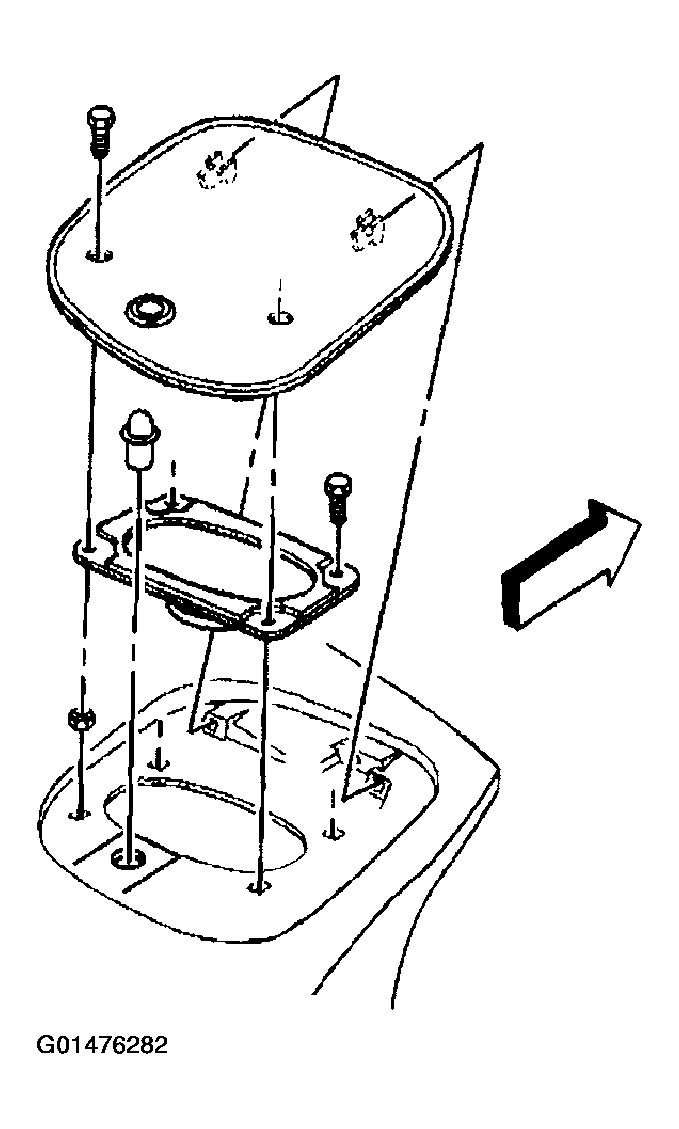

Fig 2: Installing Front Speaker Grille To Vehicle
Courtesy of GENERAL MOTORS CORP.
