Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.

Disconnect the battery negative cable.
Remove the ash tray housing. Refer to ASHTRAY REPLACEMENT in Instrument Panel, Gages and Console.
Open the ash tray and remove the liner.
Remove the bulb and socket assembly from the ash tray housing.
Remove the bulb from the socket.

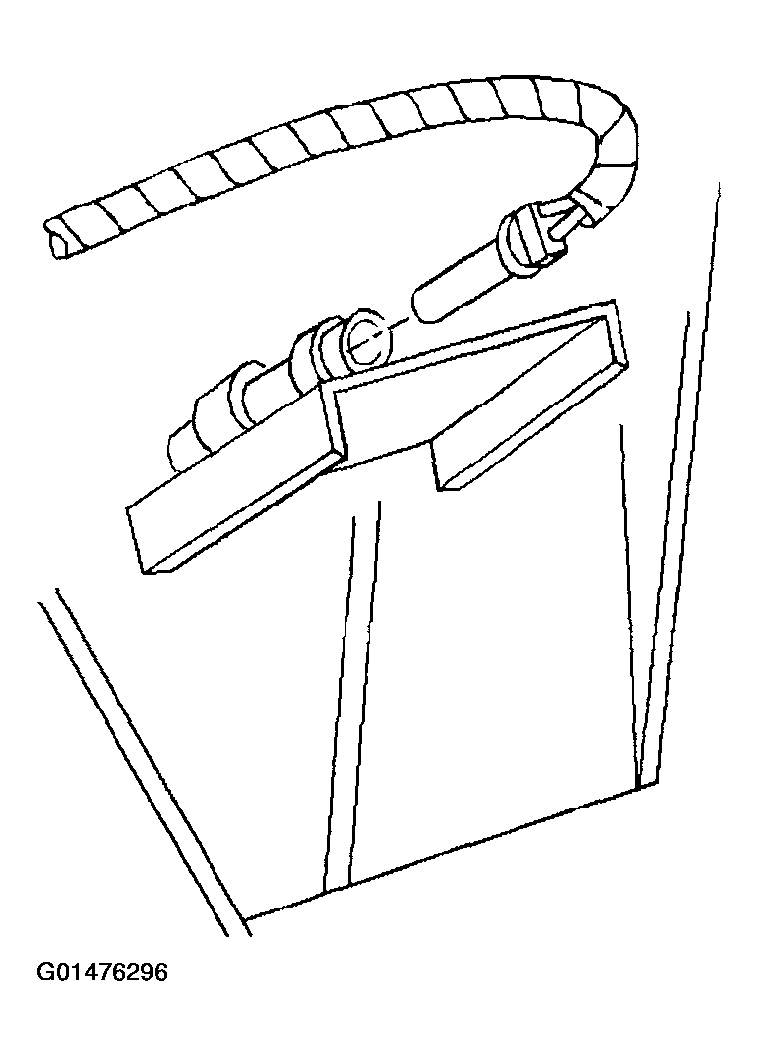

Fig 1: Removing Bulb & Socket Assembly From Ash Tray Housing
Courtesy of GENERAL MOTORS CORP.
