Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Connect the electrical connectors to the underhood electrical center.
Tighten

Tighten the electrical connector to the underhood electrical center bolts to 7 N.m (62 lb in).

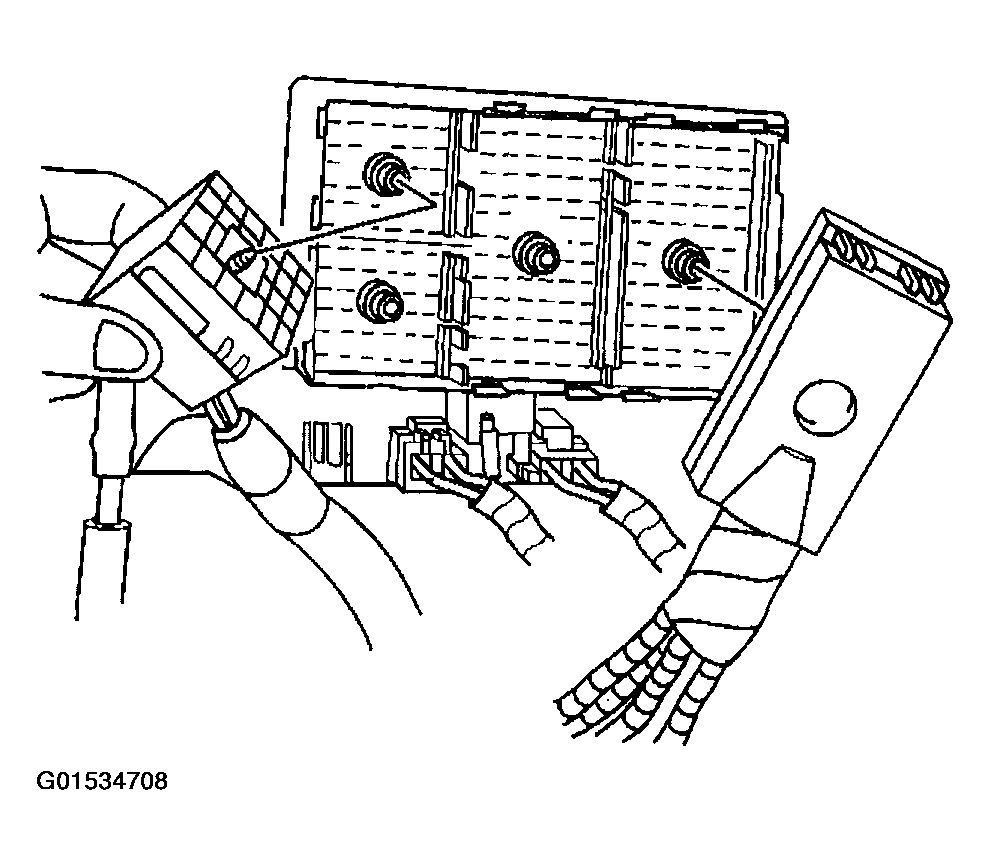

Fig 1: Connecting Electrical Connectors From Underhood Electrical Center
Courtesy of GENERAL MOTORS CORP.
Install the bolts that attach the underhood electrical center to the underhood electrical center support bracket.
Tighten

Tighten the underhood fuse block to the underhood electrical center support bracket bolts to 7 N.m (62 lb in).

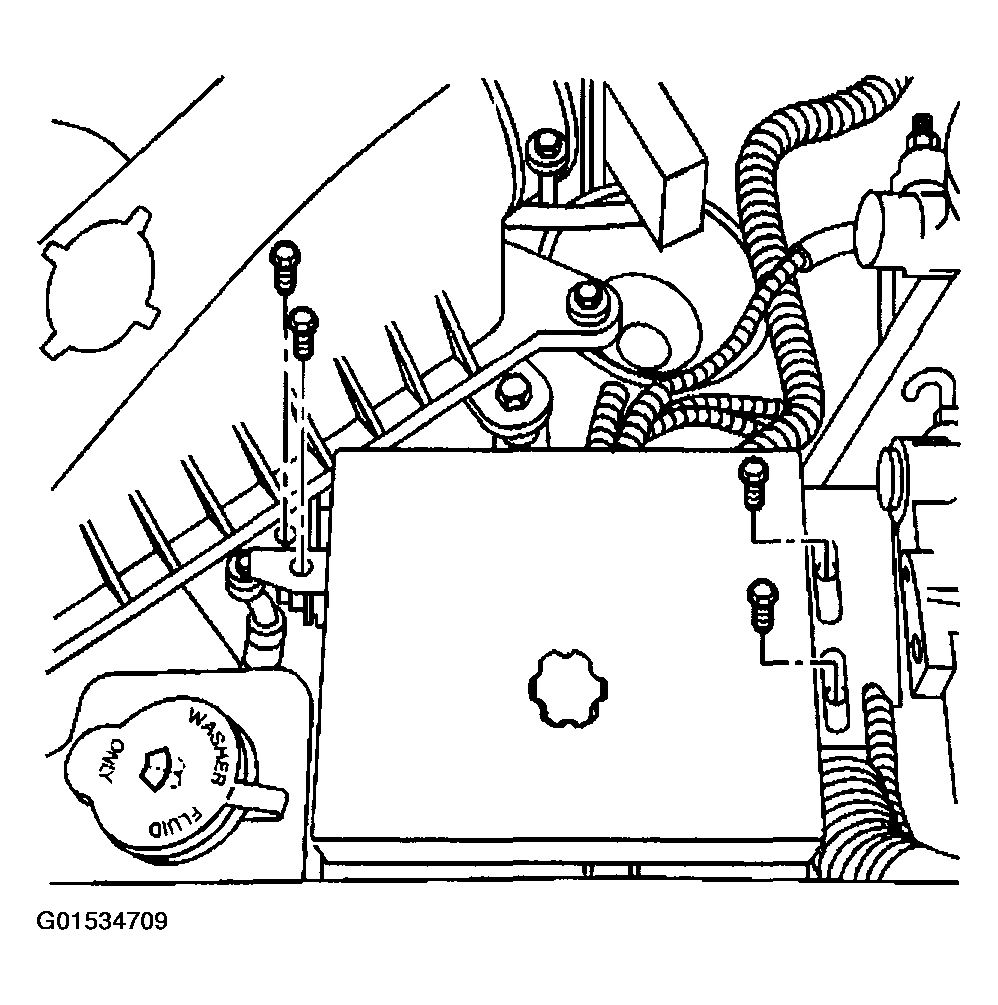

Fig 2: Tightening Electrical Connectors To Bottom Underhood Electrical Center Bolt
Courtesy of GENERAL MOTORS CORP.
Attach the battery positive cable with bolt to the underhood electrical center.
Tighten

Tighten the battery positive cable to the underhood electrical center bolt to 10 N.m (89 lb in).

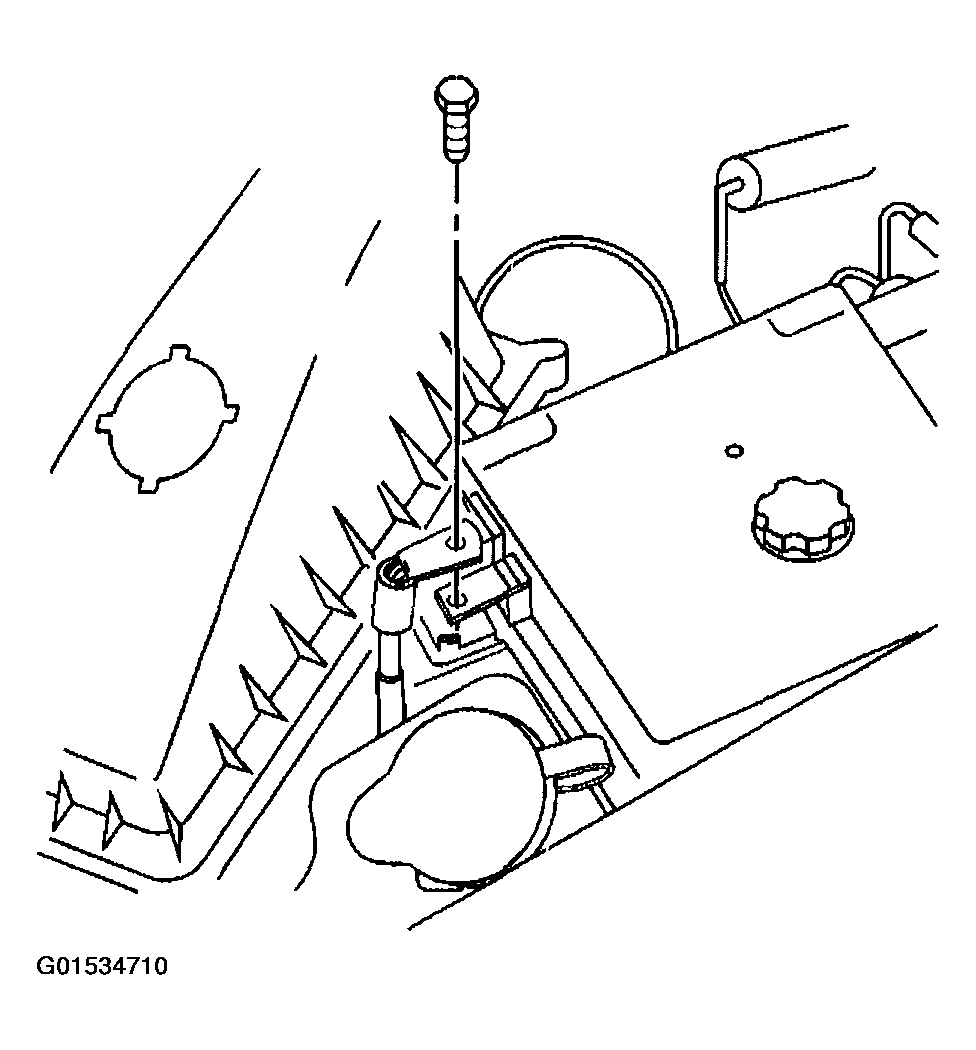

Fig 3: Attaching Battery Positive Cable With Bolt To Underhood Electrical Center
Courtesy of GENERAL MOTORS CORP.
Replace the battery positive cable cover.
Connect battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.

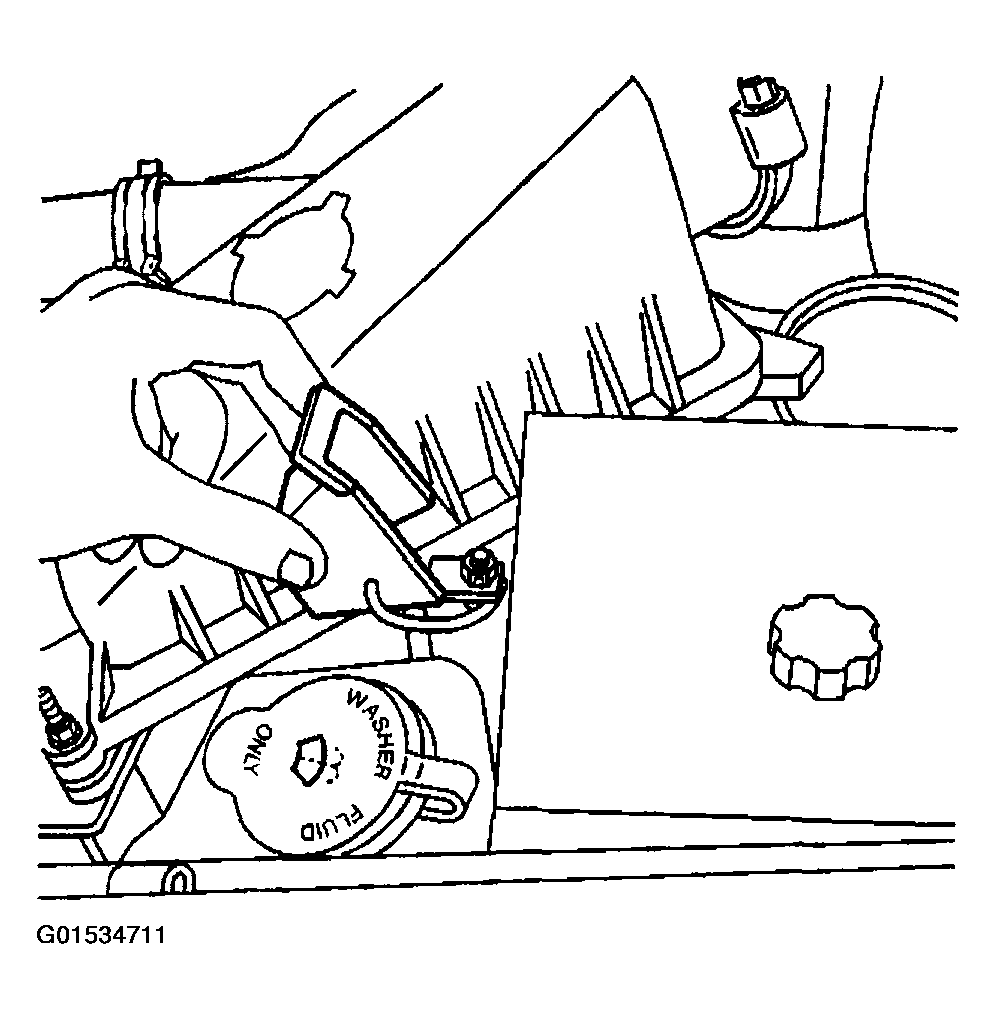

Fig 4: Battery Positive Cable Cover
Courtesy of GENERAL MOTORS CORP.
