Remove Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left insulator/closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages, and Console.
  2. Remove the screw (1) securing the junction block (2) to the instrument panel.
  3. Peel the wrapping (3) on the wiring harness back to give more play in the individual wires going to the junction block.
  4. Remove each wire and terminal from the old junction block. Refer to ELECTRICAL COMPONENT LOCATOR .

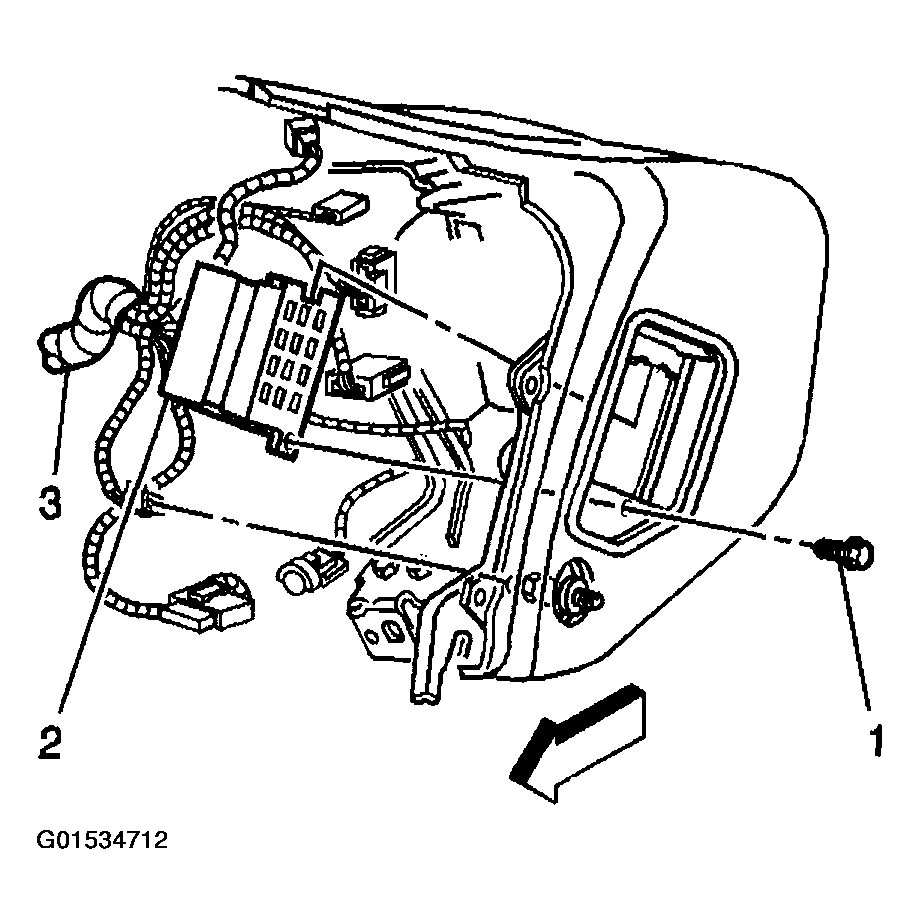

    Fig 1: Removing Junction Block To Instrument Panel Screw
    G01534712Courtesy of GENERAL MOTORS CORP.
