Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install each wire and terminal in the new junction block.
  2. Rewrap the wrapping (3) on the wiring harness.
  3. Install the junction block (2) to the instrument panel with the screw (1).
  4. Install the left insulator/closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT in Instrument Panel, Gages, and Console.

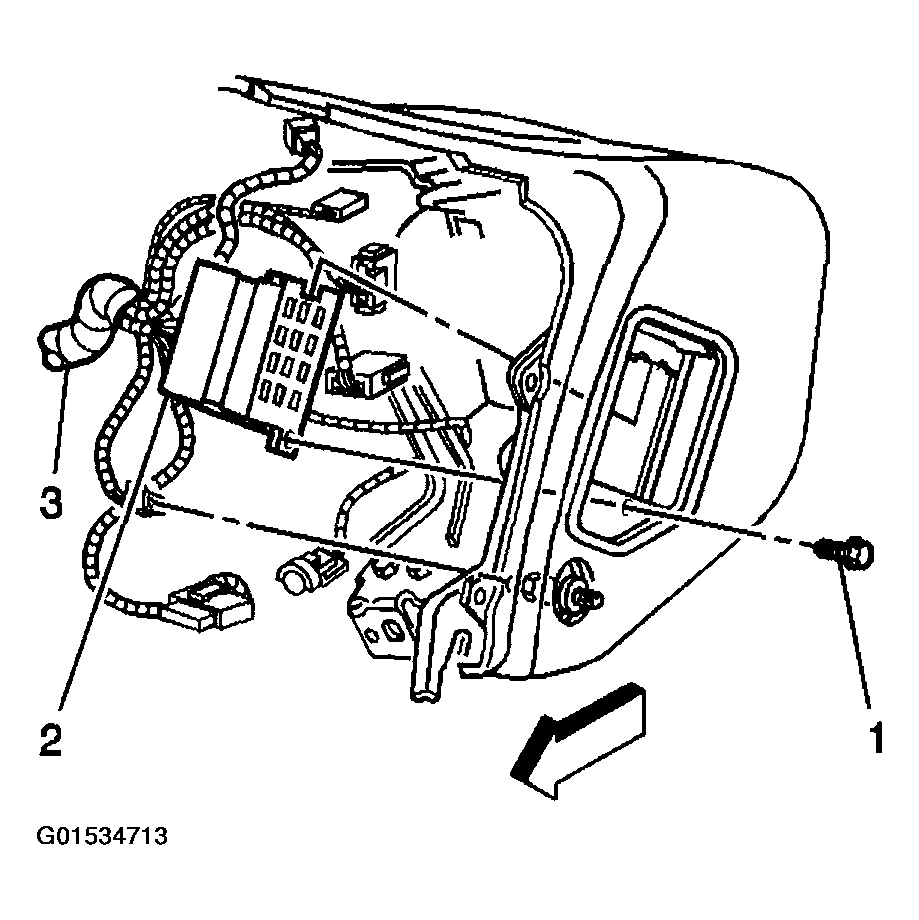

    Fig 1: Installing Junction Block To Instrument Panel Screw
    G01534713Courtesy of GENERAL MOTORS CORP.
