Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

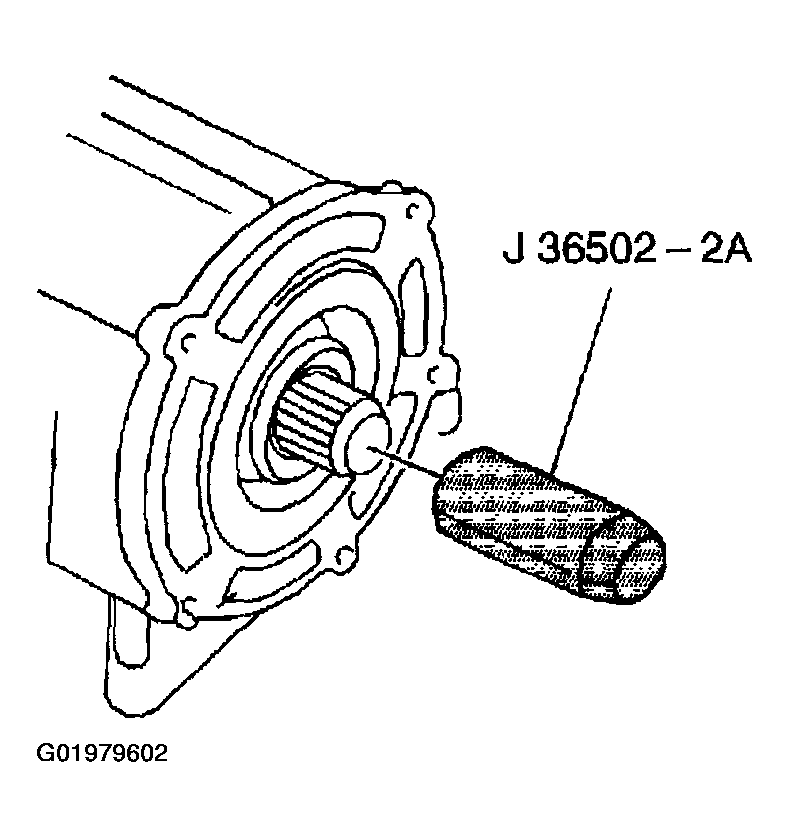

Position J 36502-2A over the output shaft.

Fig 1: Shaft Seal Protector
Courtesy of GENERAL MOTORS CORP.

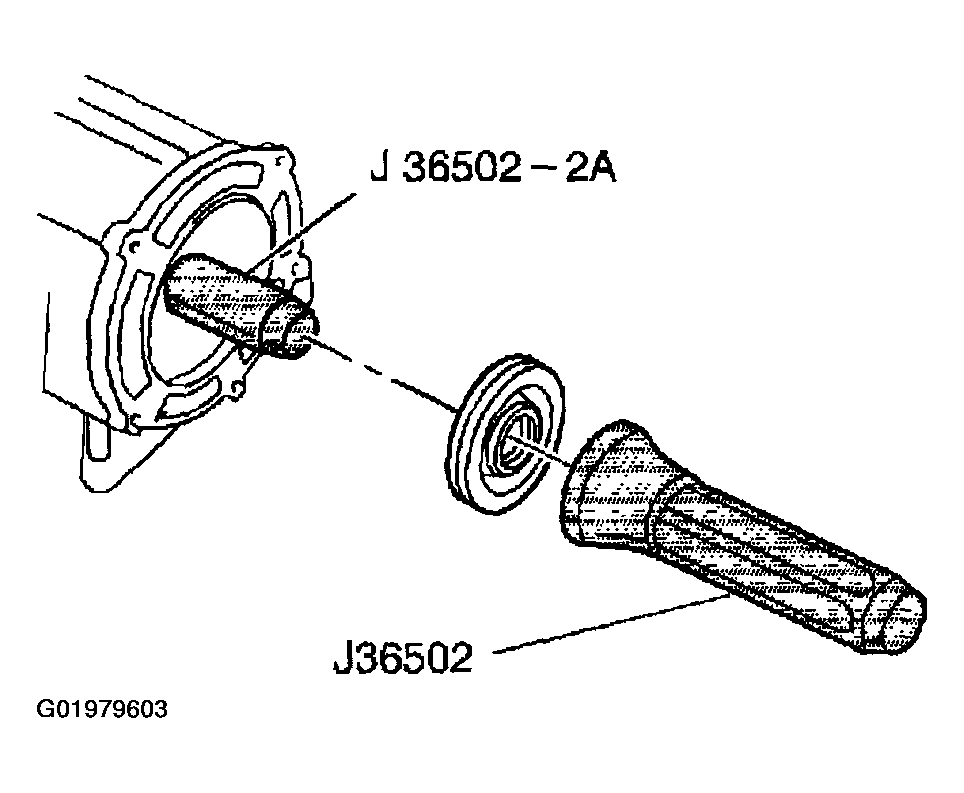

Using J 36502 install the rear output shaft seal.

Fig 2: Installing Rear Output Shaft Seal By Using Extension Housing Seal Installer
Courtesy of GENERAL MOTORS CORP.

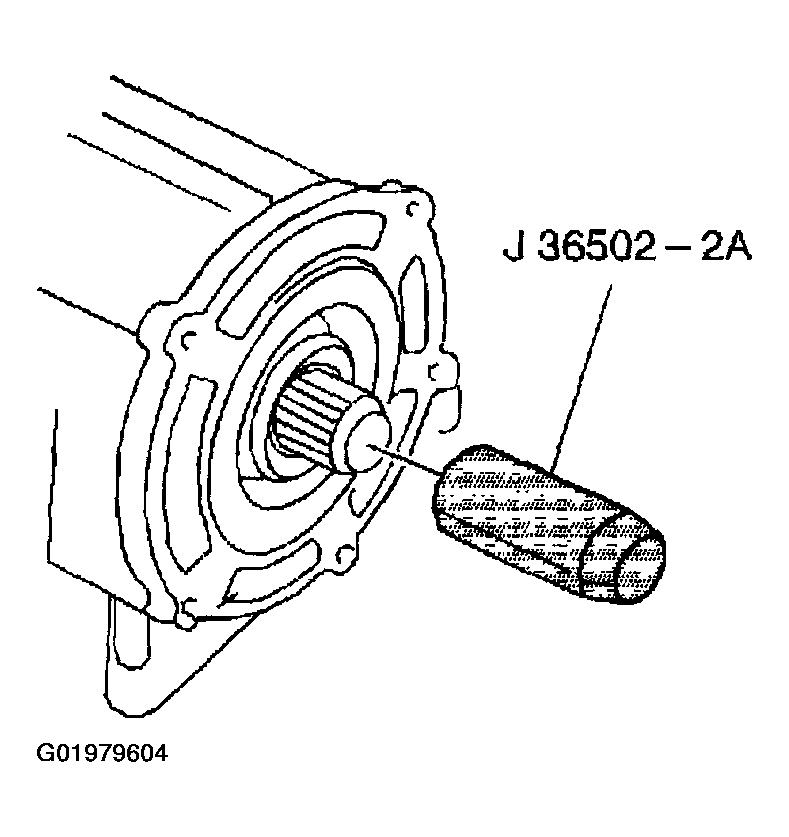

Remove J 36502-2A from the output shaft.

Fig 3: Removing Shaft Seal Protector From Output Shaft
Courtesy of GENERAL MOTORS CORP.

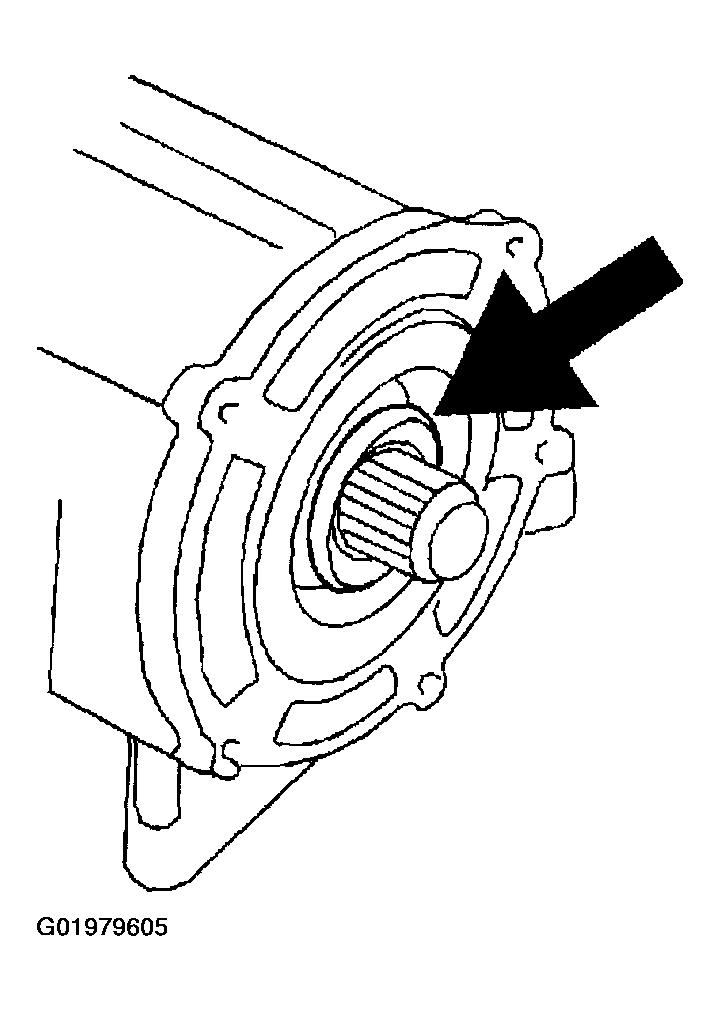

Fill the space between the seal lips with grease GM P/N 1052497 or equivalent.
Install the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT .
Check the transmission oil level. Refer to FLUID REPLACEMENT
Lower the vehicle.

Fig 4: Locating Transmission Oil Level
Courtesy of GENERAL MOTORS CORP.
