Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE in Propeller Shaft.
Remove the rear oil seal from the rear case using the J 6125-1B (1) and the J 23129 (2).

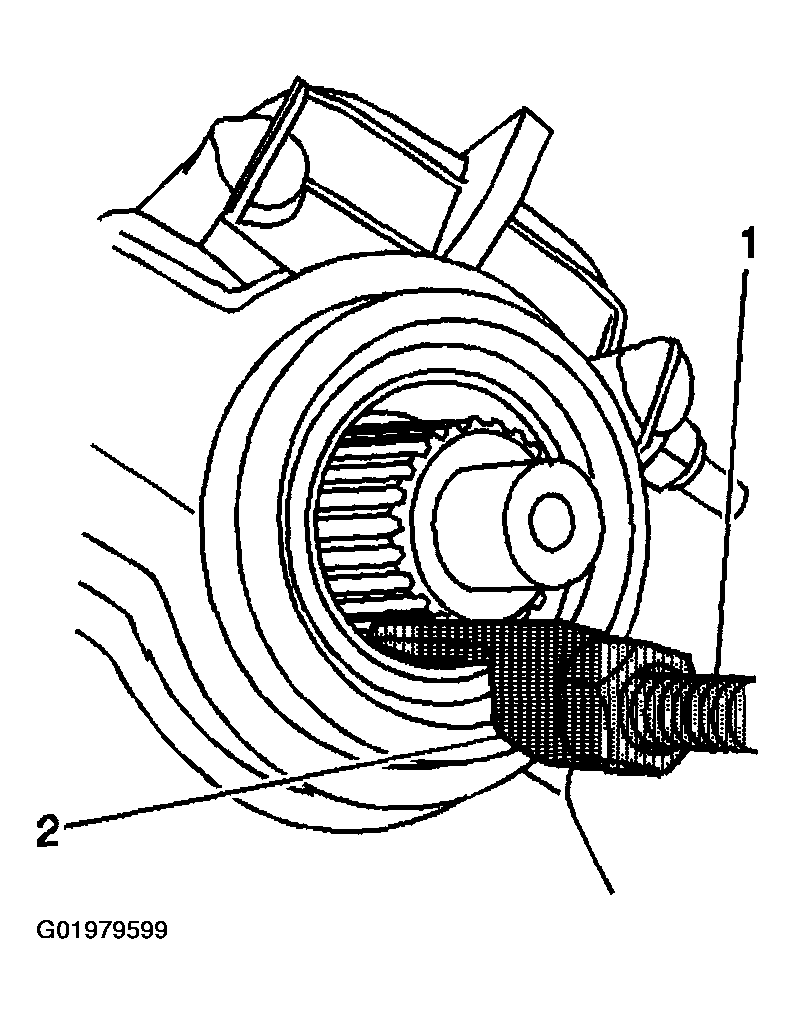

Fig 1: Removing Rear Oil Seal From Rear Case
Courtesy of GENERAL MOTORS CORP.
