Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important : Inspect the bearing retainer for any nicks or cracks that may result in a leak. Replace as necessary.

Place the seal in the front bearing retainer.
Using the J 38801 install the seal.

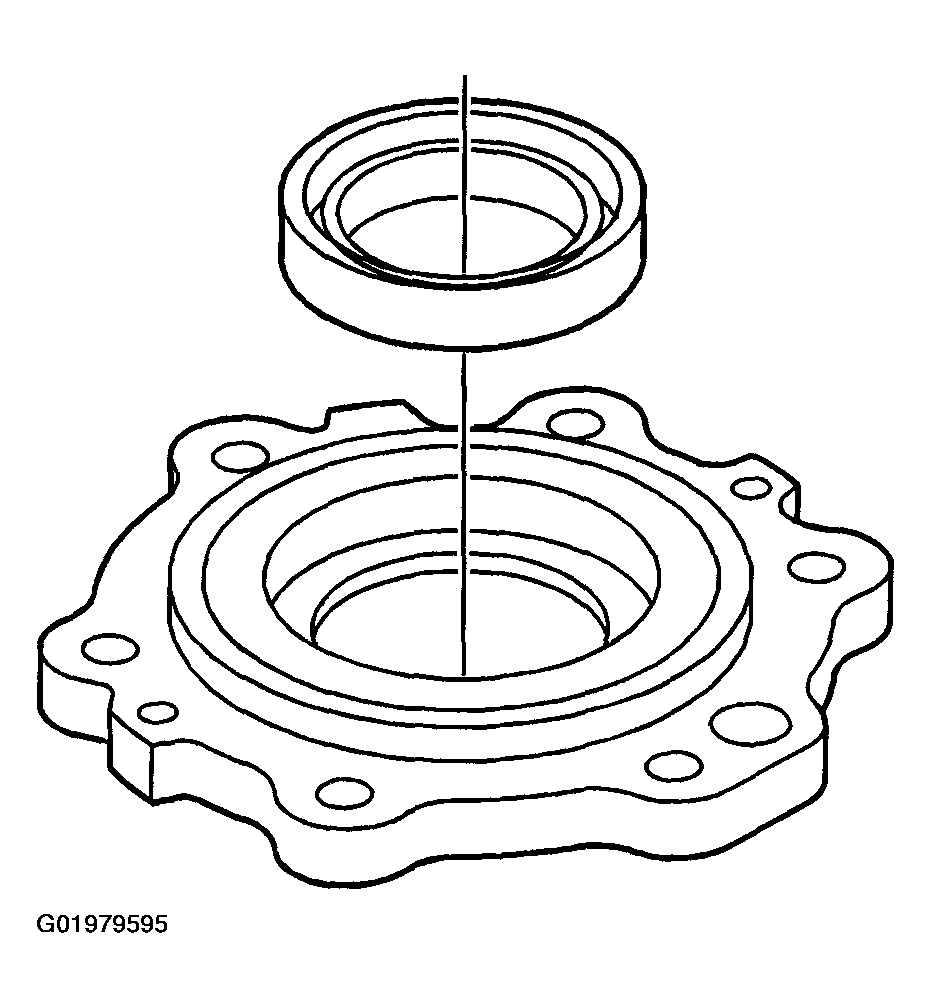

Fig 1: Placing Seal In Front Bearing Retainer
Courtesy of GENERAL MOTORS CORP.
Apply RTV gasket material to the inboard side of the bearing retainer.

Fig 2: Locating RTV Gasket Material
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the front bearing retainer and the 6 bolts to the transmission.
Tighten

Tighten the 6 bearing retainer bolts to 14 N.m (10 lb ft).

Fig 3: Front Bearing Retainer
Courtesy of GENERAL MOTORS CORP.
Install the clutch actuator and the bolts.
Tighten

Tighten the clutch actuator bolts to 8 N.m (71 lb in).
Install the transmission. Refer to TRANSMISSION REPLACEMENT .

Fig 4: Clutch Actuator
Courtesy of GENERAL MOTORS CORP.
