Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift tower housing to the transmission.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the shift tower housing bolts.

    Tighten

    Tighten the shift tower housing bolts to 20 N.m (15 lb ft).

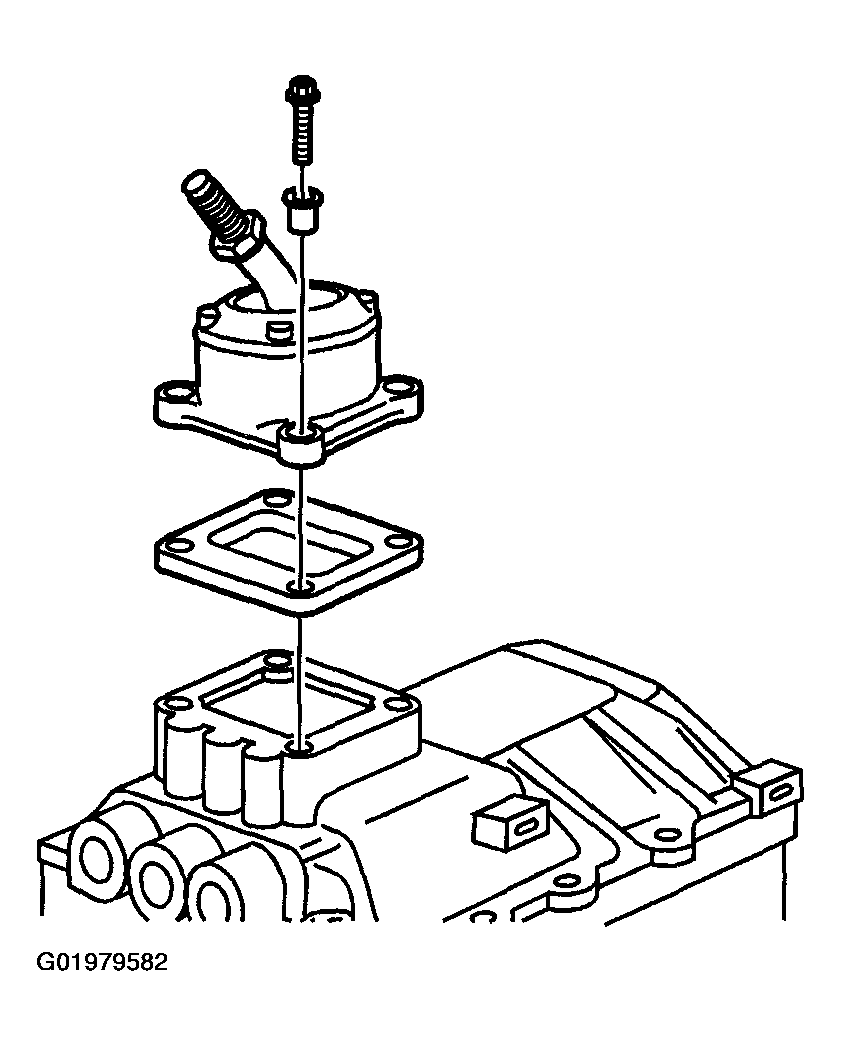

    Fig 1: Shift Tower Assembly
    G01979582Courtesy of GENERAL MOTORS CORP.
  3. Install the boot to the shift tower.
  4. Install the shift boot screws.

    Tighten

    Tighten the shift boot screws to 2 N.m (18 lb in).

  5. Install the shift lever to the shift tower.

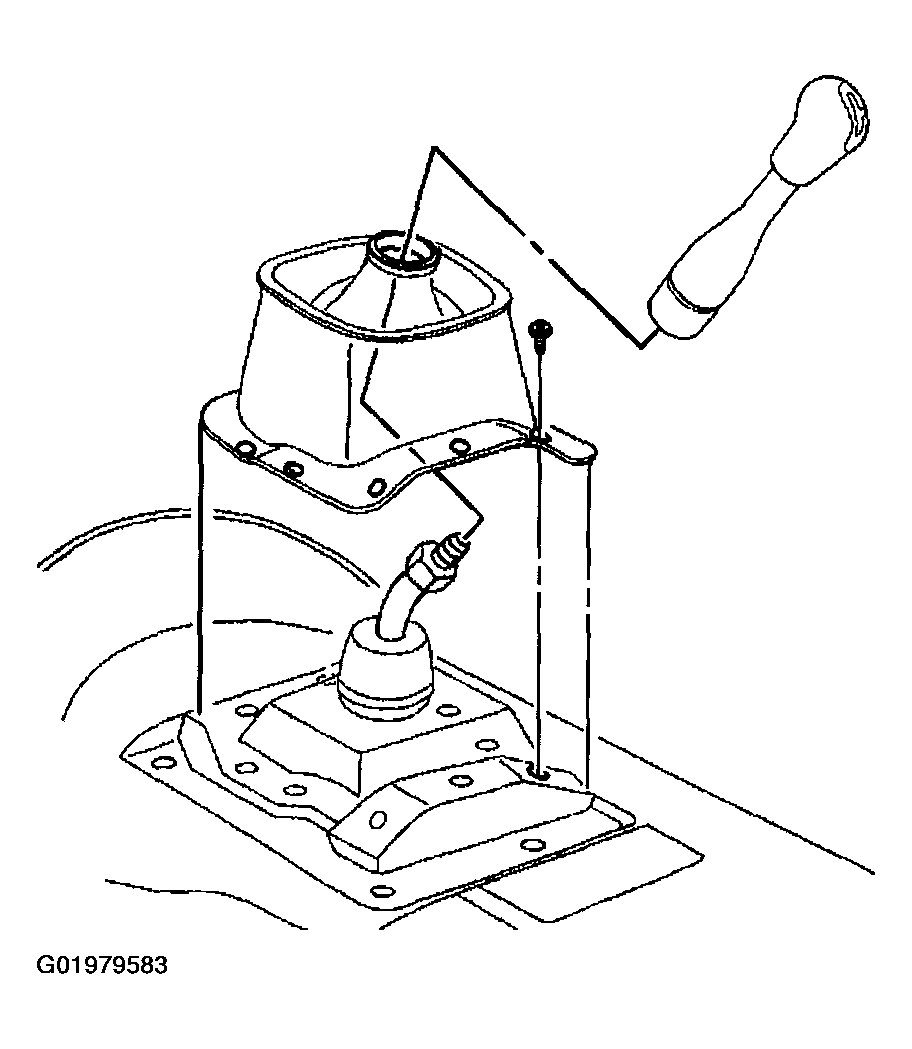

    Fig 2: Shift Tower
    G01979583Courtesy of GENERAL MOTORS CORP.
