Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever from the shift tower. Do not remove the shift lever adjusting nut.
  2. Remove the screws securing the boot to the panel.
  3. Remove the boot from the shift tower.

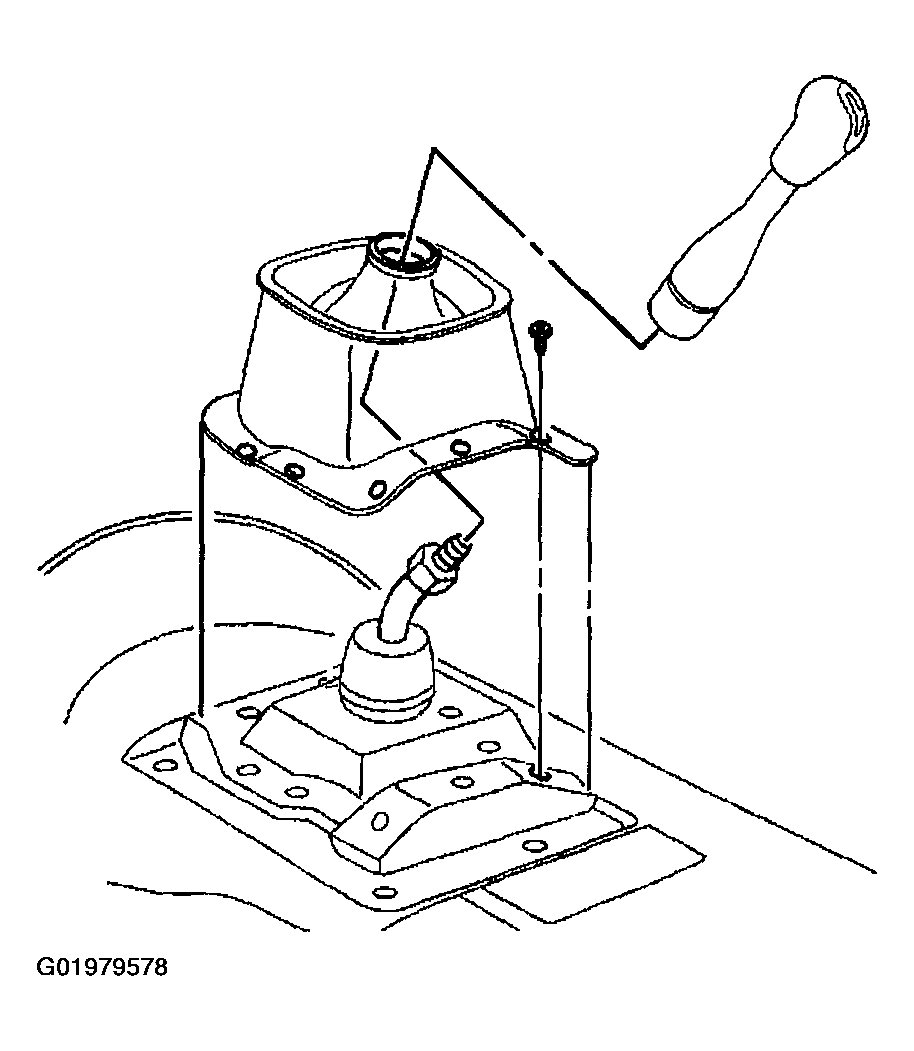

    Fig 1: Control Lever
    G01979578Courtesy of GENERAL MOTORS CORP.
