Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.

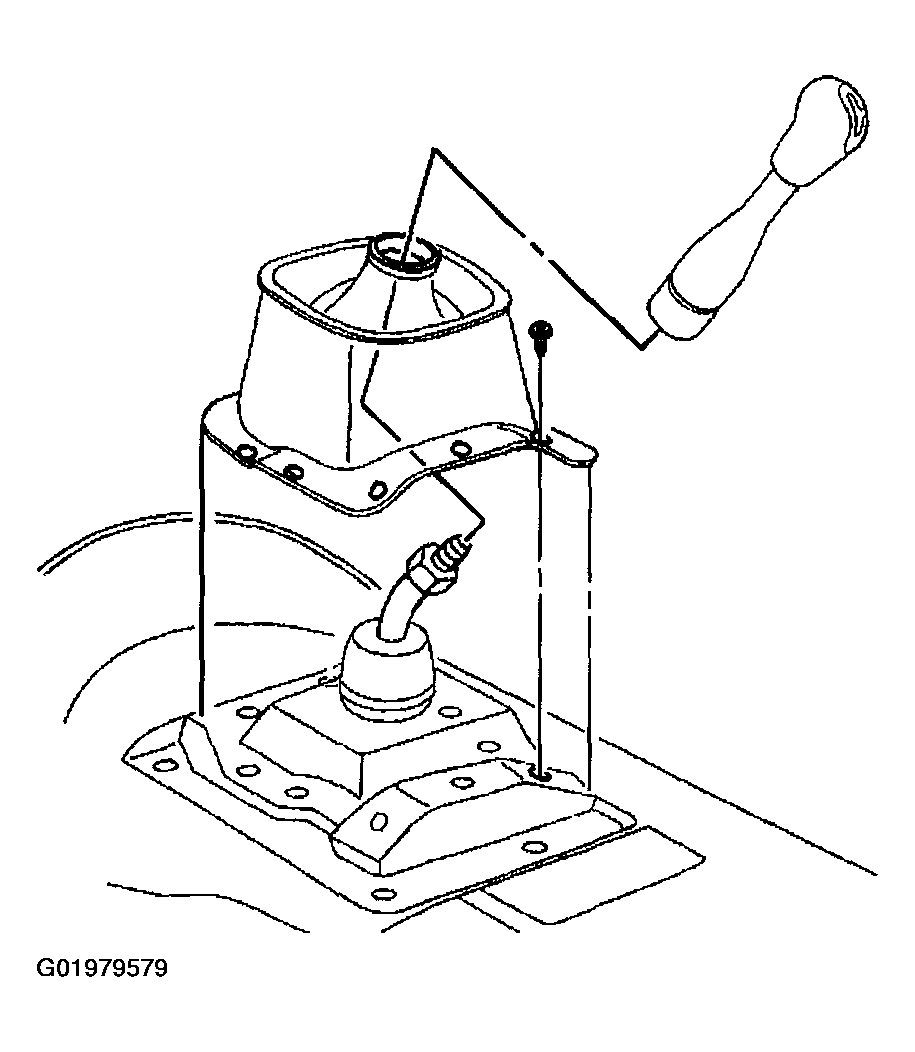

- Install the boot over the shift tower and secure to the panel with the screws.
Tighten
Tighten the screws to 2 N.m (18 lb in).
- Install the shift lever to the shift tower.
If required, center the shift lever with the adjusting nut.
Tighten
Tighten the adjusting nut to 48 N.m (35 lb ft).
