Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the backup lamp switch electrical connector.
  3. Remove the backup lamp switch.

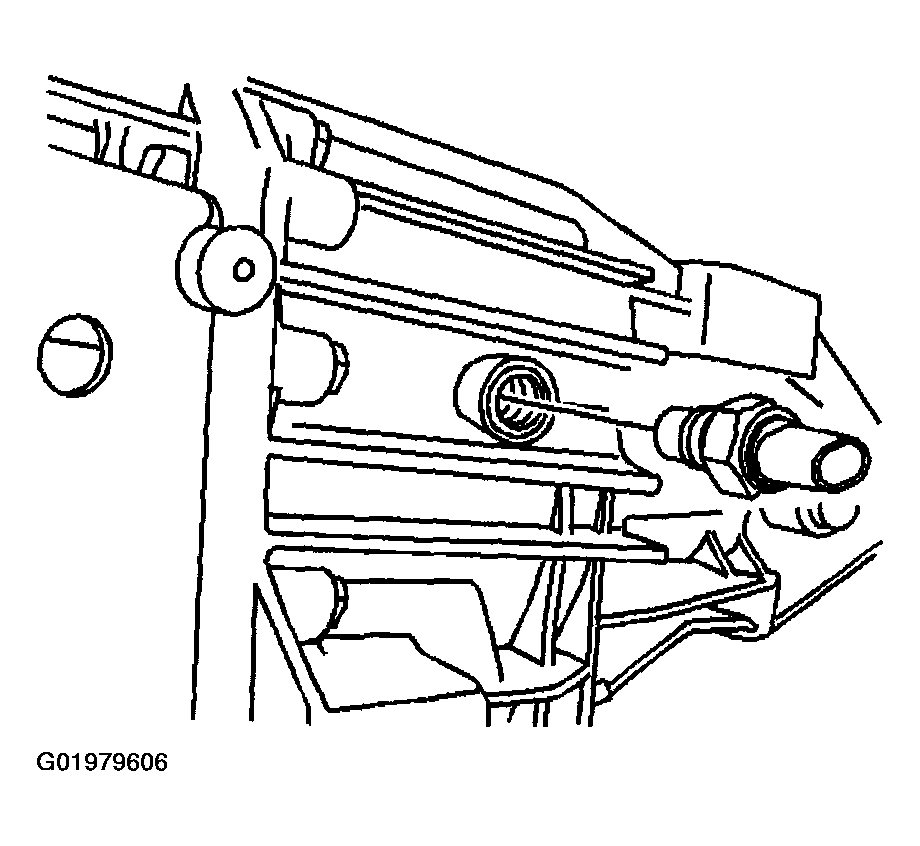

    Fig 1: Backup Lamp Switch
    G01979606Courtesy of GENERAL MOTORS CORP.
