Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
Important : The backup lamp switch has pre-applied thread sealant on the threads.

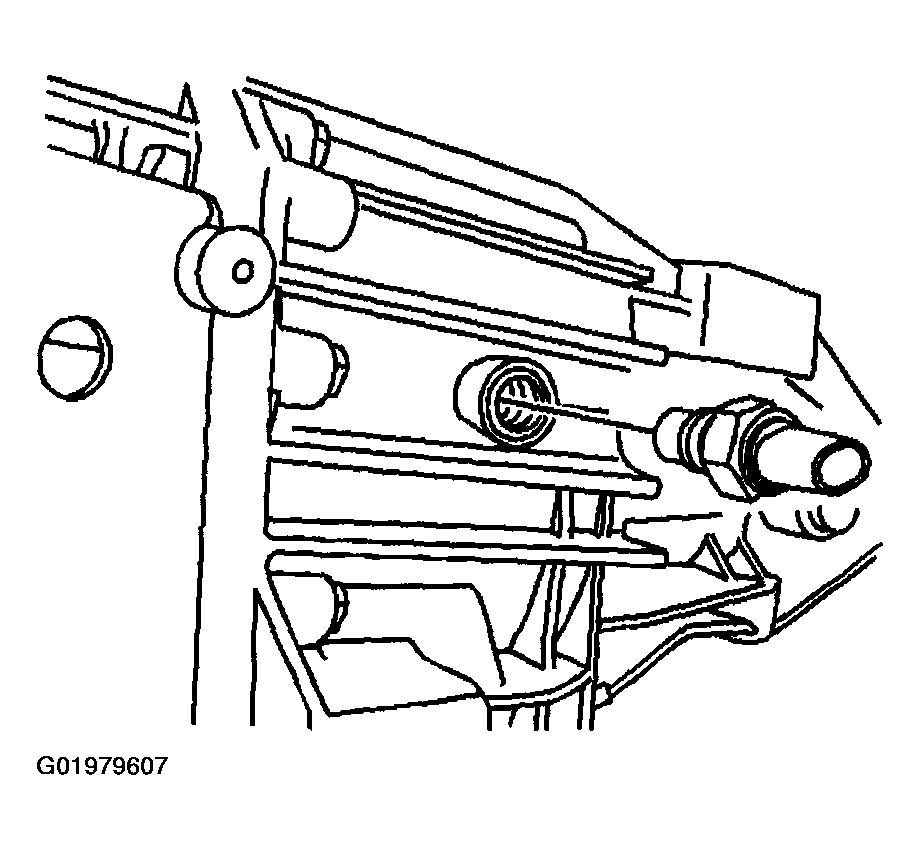

- Install the backup lamp switch.
Tighten
Tighten the backup lamp switch to 37 N.m (27 lb ft).
- Connect the backup lamp switch electrical connector.
- Lower the vehicle.
