Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. This test confirms if the scan tool is receiving a clutch switch position signal.
3. This step inspects the clutch pedal connector and adjustment.

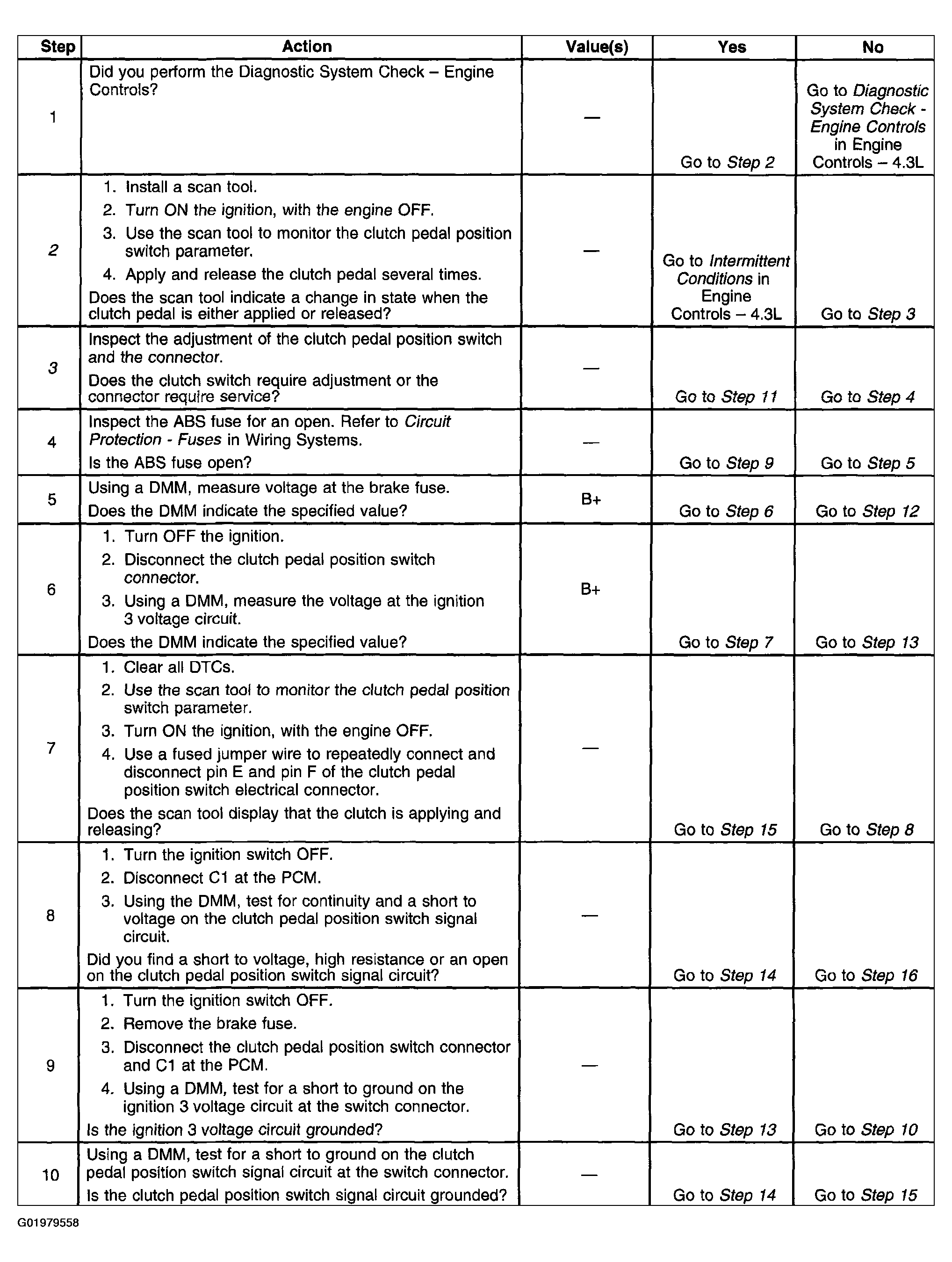

Fig 1: DTC P0704 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

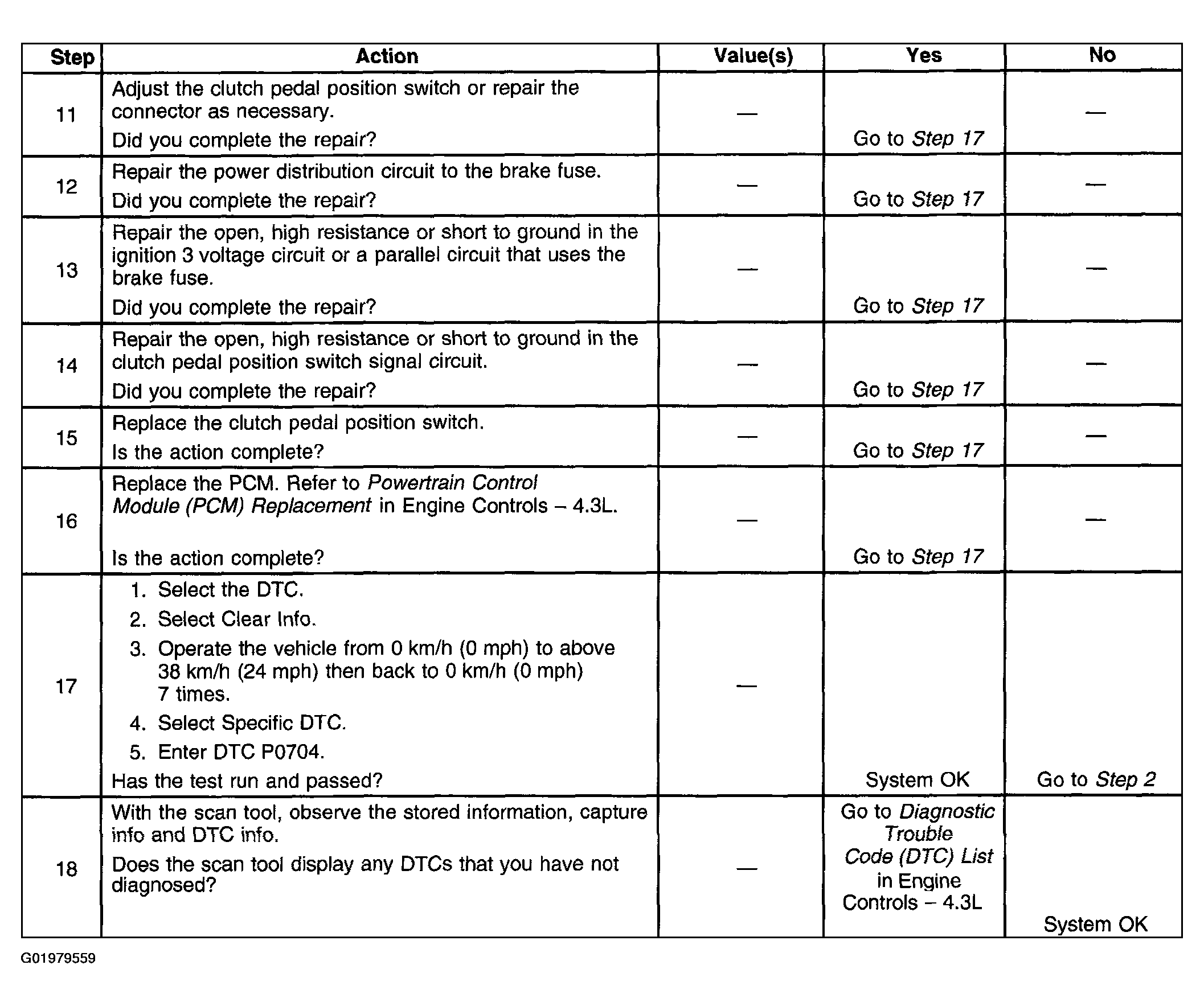

Fig 2: DTC P0704 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
