Transmission System Description and Operation
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

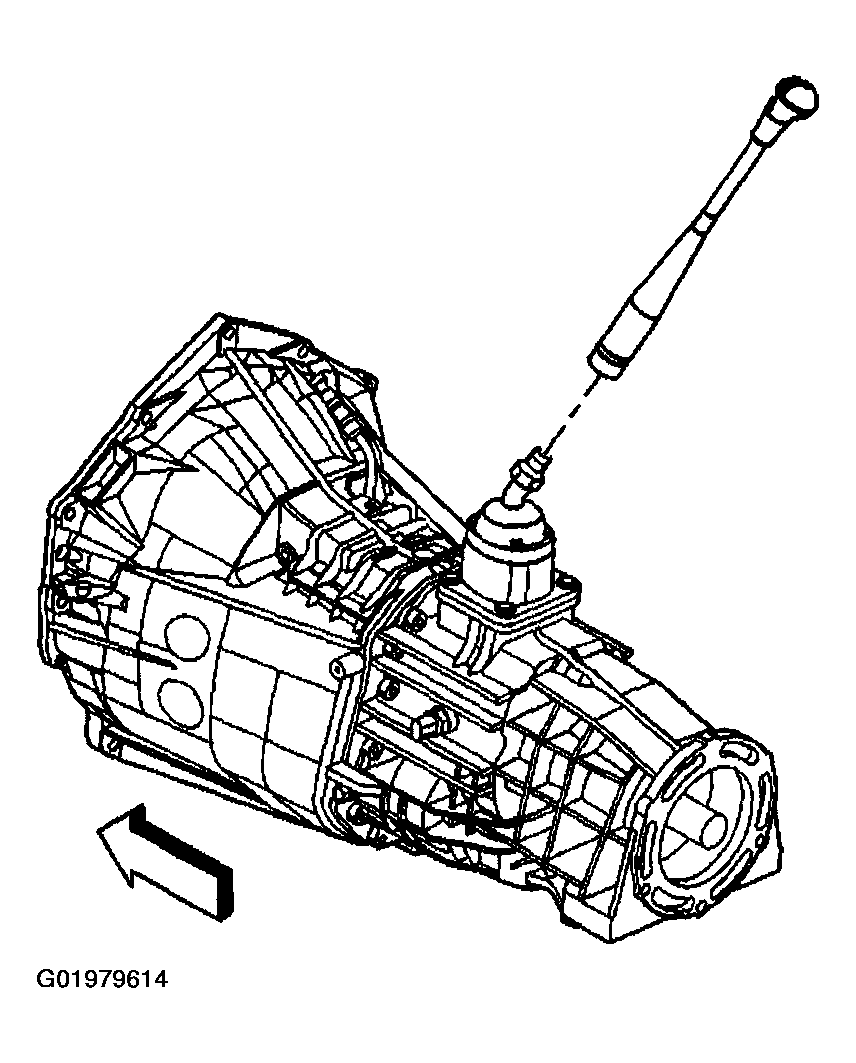

The New Venture Gear NV 3500 is a 5 speed manual transmission used on light duty trucks with the 4.3L engine. The NV 3500 is identified by RPO M50.
The transmission is available in rear wheel drive and four wheel drive.
The transmission has the following features:
- Constant mesh helical gearing for reduced noise
- A 2 piece aluminum housing
- Synchronized shifting in all gears
- A shift tower mounted shift lever
- A single rail shift system
