Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the vehicle speed sensor electrical connector.
  3. Remove the vehicle speed sensor retaining bolt.
  4. Remove the vehicle speed sensor.

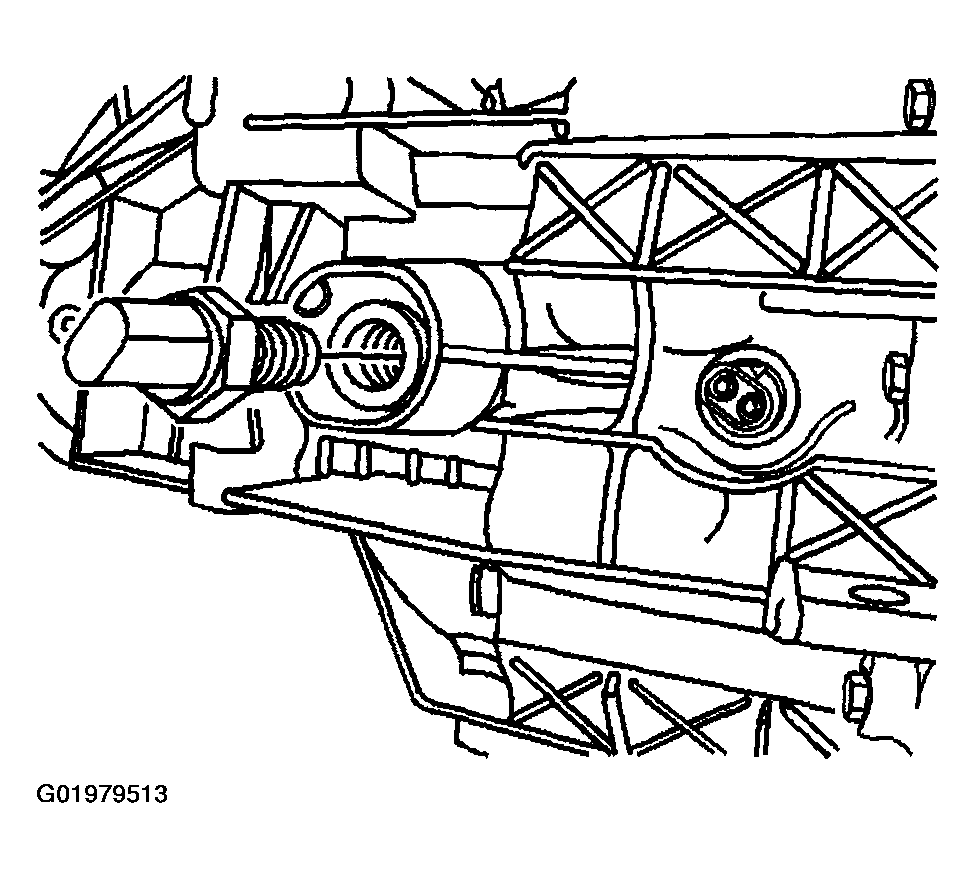

    Fig 1: Vehicle Speed Sensor
    G01979513Courtesy of GENERAL MOTORS CORP.
