Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the J 36503  install the new rear oil seal.
  2. Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE in Propeller Shaft.
  3. Fill the transmission to the proper fluid level. Refer to TRANSMISSION FLUID REPLACEMENT .
  4. Lower the vehicle.

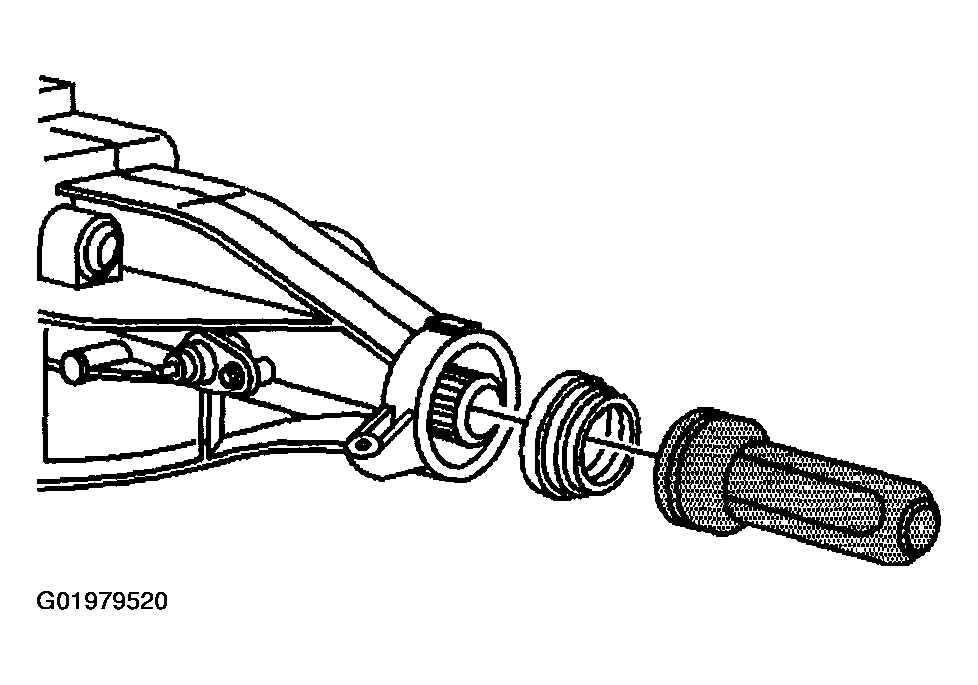

    Fig 1: New Rear Oil Seal
    G01979520Courtesy of GENERAL MOTORS CORP.
