Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Thoroughly clean around the fill plug and the oil drain plug.
Use the J 36511 in order to remove the oil fill plug.

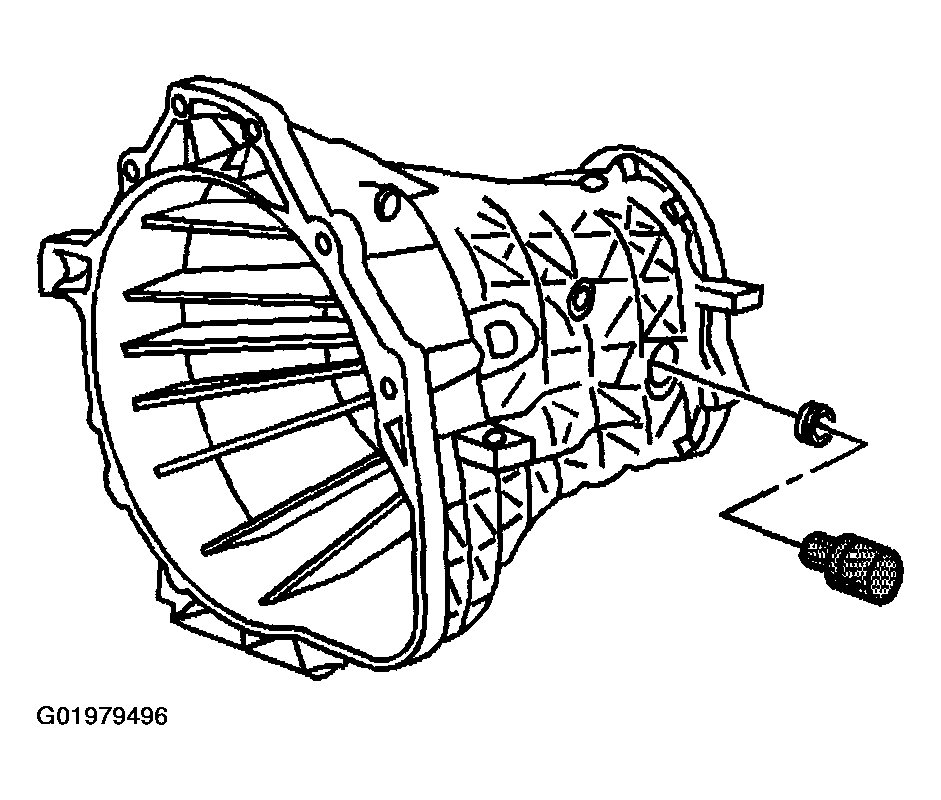

Fig 1: Oil Fill Plug
Courtesy of GENERAL MOTORS CORP.
Catch the oil in a suitable container.
Use the J 36511 in order to remove the oil drain plug.

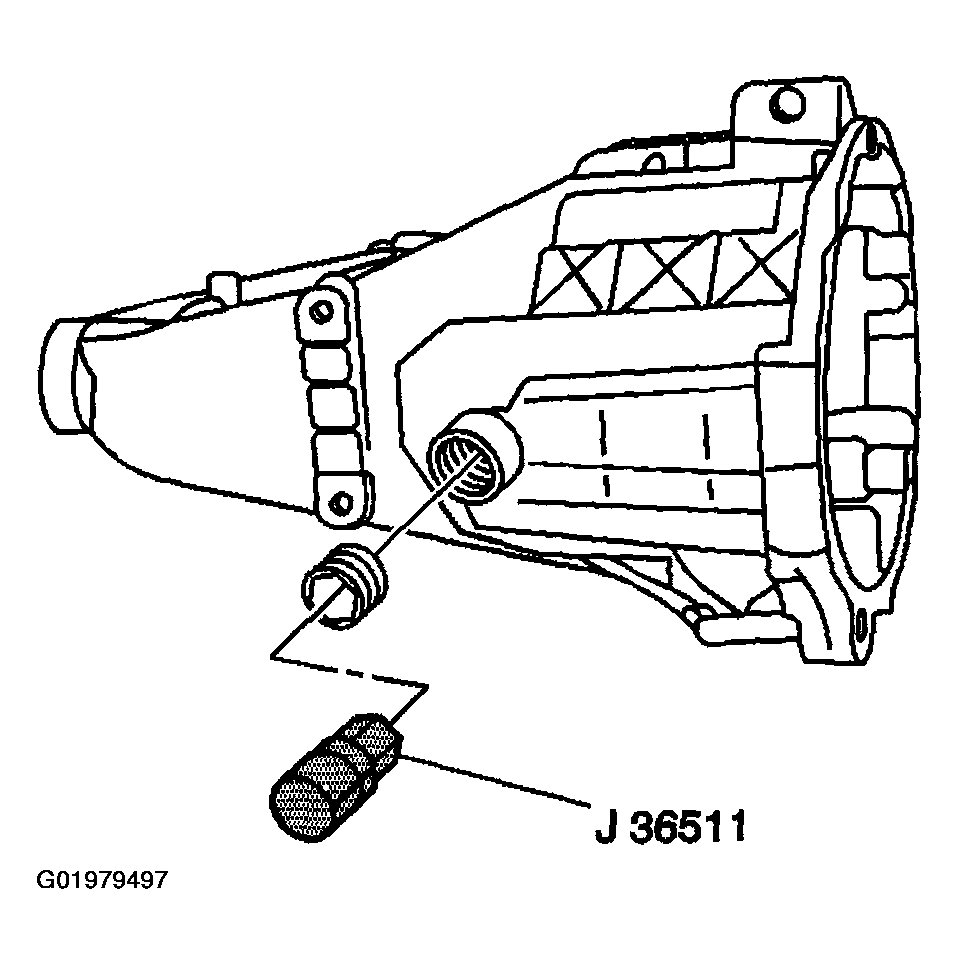

Fig 2: Oil Drain Plug
Courtesy of GENERAL MOTORS CORP.
