Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped remove the 3 console nuts and the console.
  2. Remove the shift lever from the shift tower. Do not remove the shift lever adjusting nut.

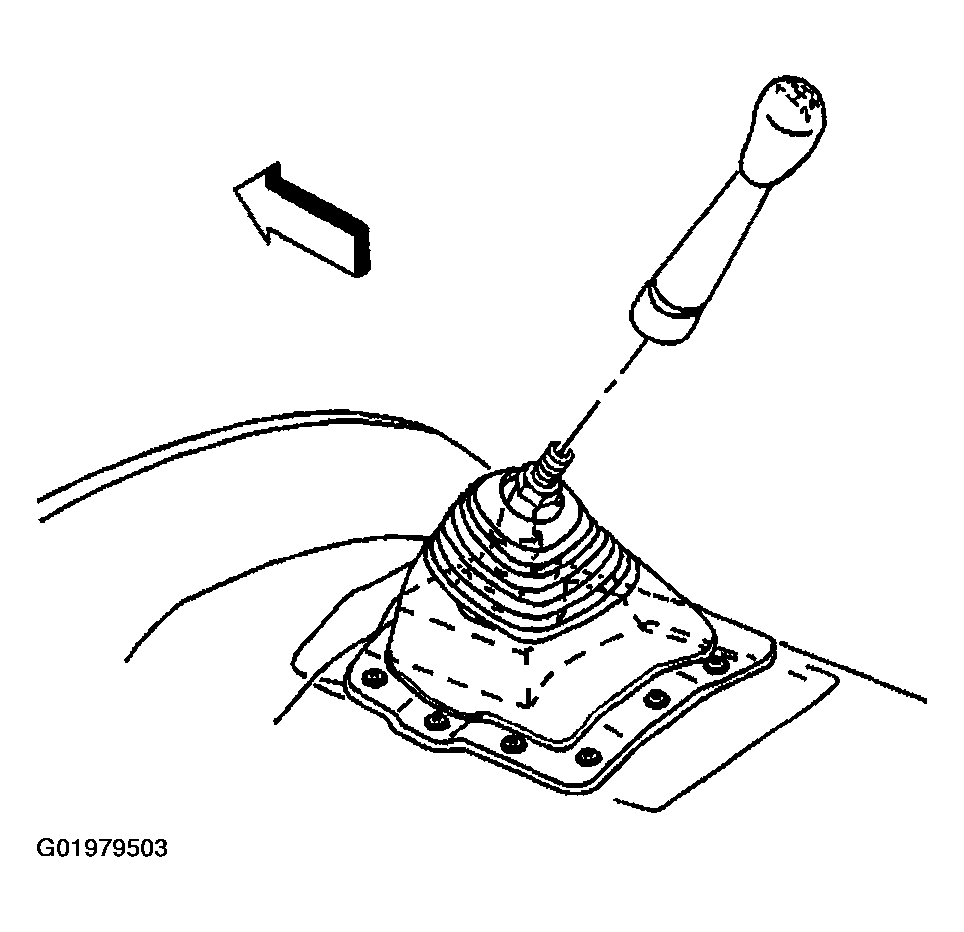

    Fig 1: Removing Shift Lever From Shift Tower
    G01979503Courtesy of GENERAL MOTORS CORP.
  3. Pull back the carpet to access the screws.
  4. Remove the screws securing the boot to the panel.

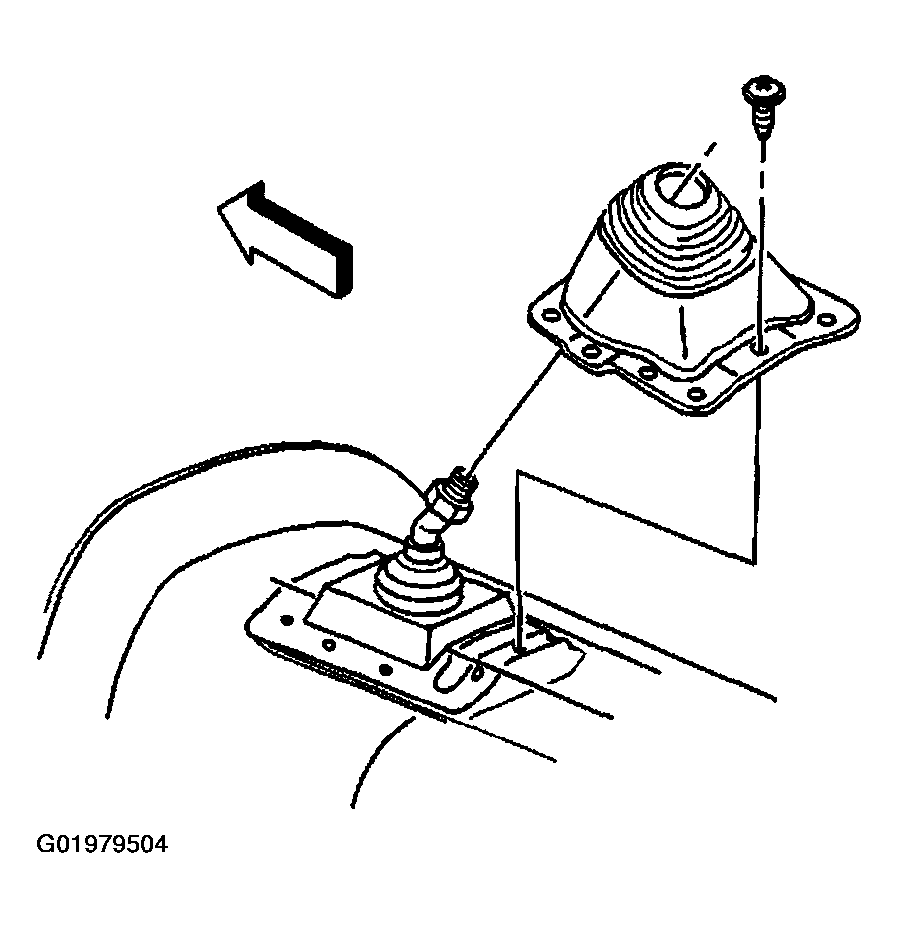

    Fig 2: Removing Screws That Securing Boot To panel
    G01979504Courtesy of GENERAL MOTORS CORP.
