Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma and 2003 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the boot over the shift tower.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the shift boot screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

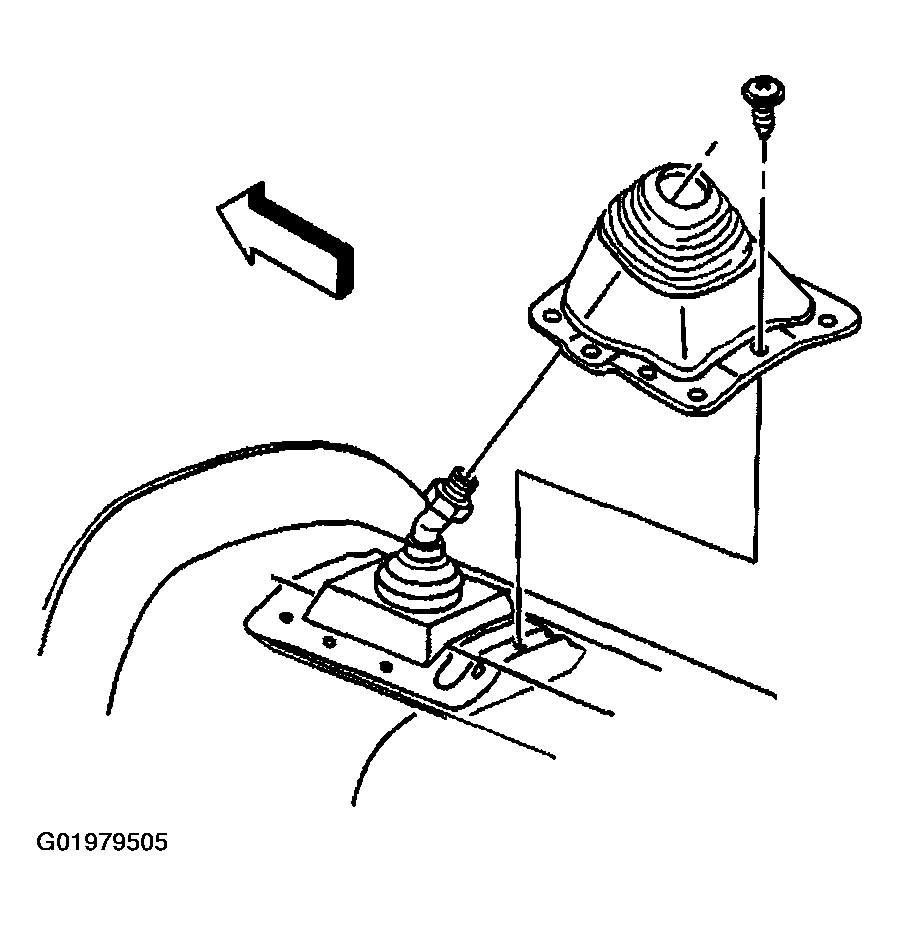

    Fig 1: Installing Boot Over Shift Tower
    G01979505Courtesy of GENERAL MOTORS CORP.
  3. Install the shift lever to the shift tower. If required, center the shift lever with the adjusting nut.

    Tighten

    Tighten the adjusting nut to 48 N.m (35 lb ft).

  4. If equipped install the console and the 3 console nuts.

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

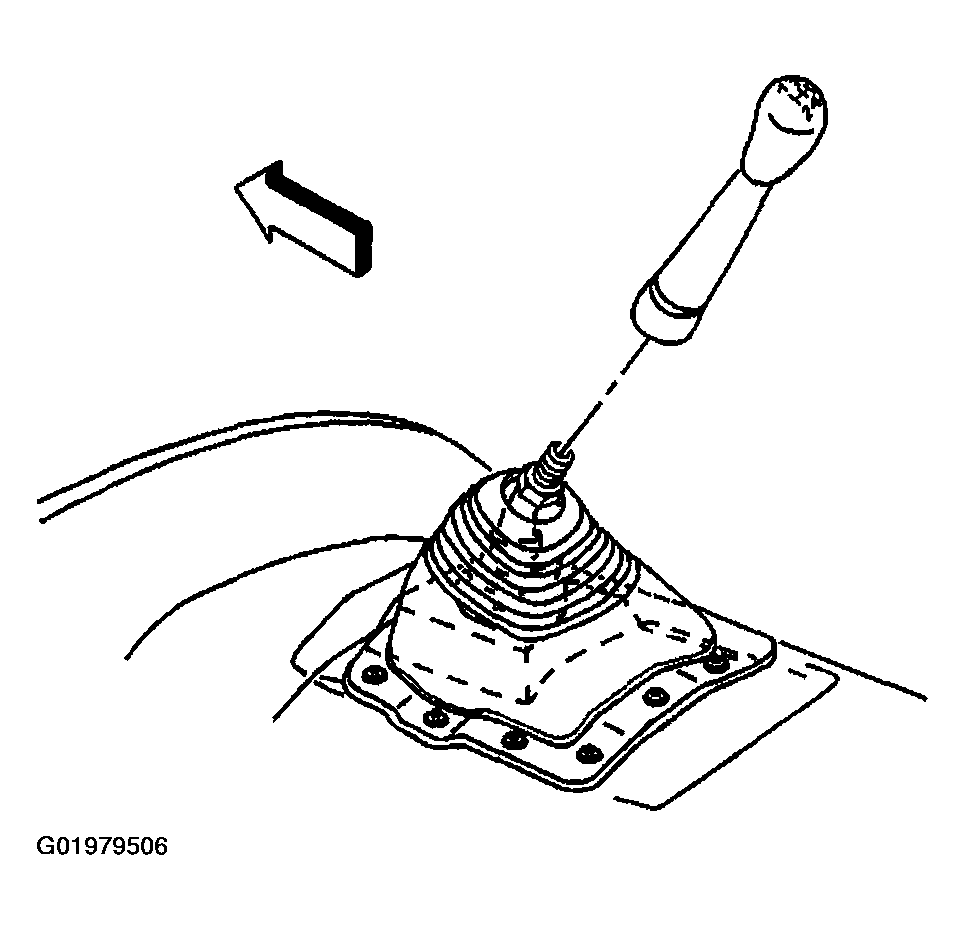

    Fig 2: Installing Shift Lever To Shift Tower
    G01979506Courtesy of GENERAL MOTORS CORP.
