Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT in Engine Mechanical - 2.2L or ENGINE FLYWHEEL REPLACEMENT in Engine Mechanical - 4.3L.

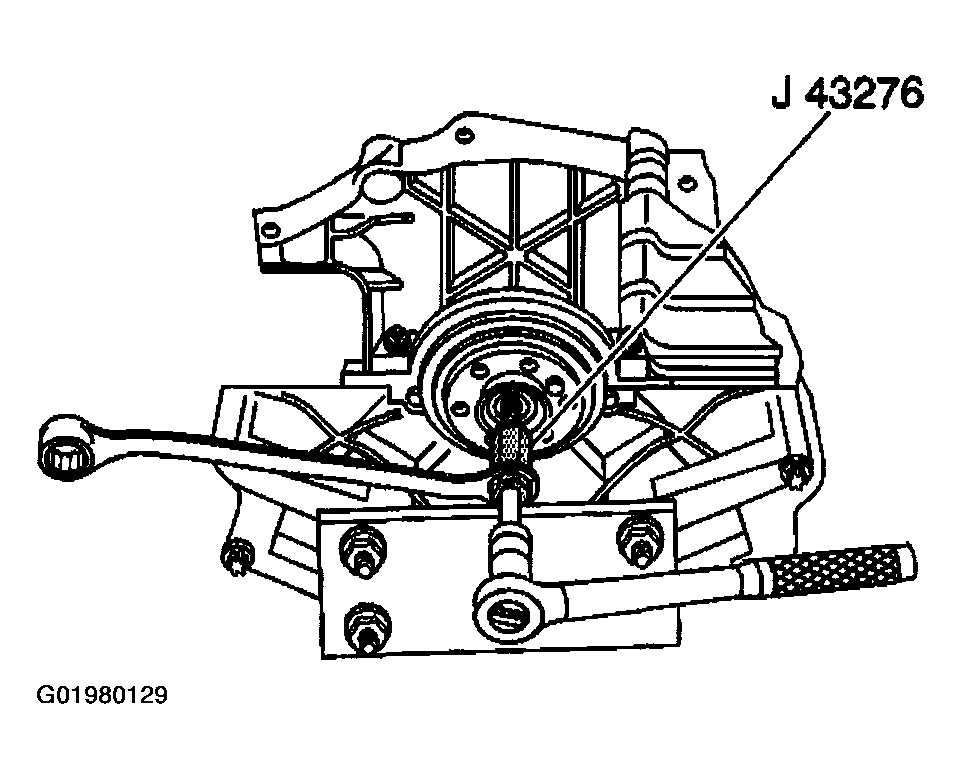

Fig 1: Clutch Pilot Bearing
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

NOTE: When using the J 43276 Clutch Pilot Bearing Remover always secure the J 43276-1 Clutch Pilot Bearing Remover tool body using a wrench. Do not allow the J 43276-1 tool body to rotate. Failing to do so will cause damage to the J 43276-1 tool body.
Remove the clutch pilot bearing using the J 43276
1. 2.1. Install the J 43276-1 tool body into the clutch pilot bearing.
2. 2.2. Using a wrench secure the J 43276-1 tool body.
3. 2.3. Insert the J 43276-2 forcing screw into the J 43276-1 tool body.
4. 2.4. Rotate the J 43276-2 forcing screw clockwise into the J 43276-1 tool body until the clutch pilot bearing is completely removed from the crankshaft.
5. 2.5. Rotate the J 43276-2 forcing screw counterclockwise to remove the J 43276-2 forcing screw from the J 43276-1 tool body.
6. 2.6. Remove the J 43276-1 tool body from the clutch pilot bearing.
Discard the clutch pilot bearing.
