Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

Install the NEW clutch pilot bearing using the J 26516-A with the J 8092 .
Measure to ensure the proper installation depth is obtained.
Install the flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT in Engine Mechanical 2.2L or ENGINE FLYWHEEL REPLACEMENT in Engine Mechanical 4.3L.

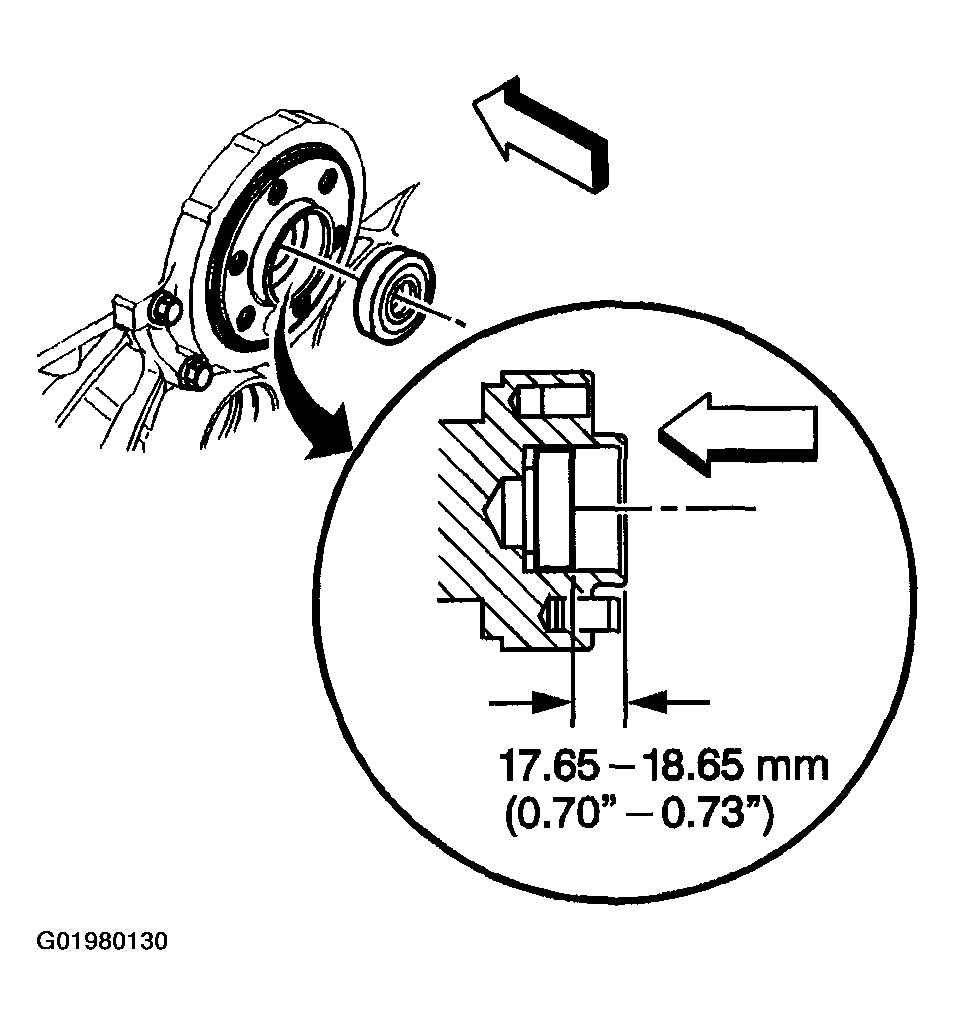

Fig 1: Identifying Proper Installation Depth Of Clutch Pilot Bearing
Courtesy of GENERAL MOTORS CORP.
