Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to TRANSMISSION REPLACEMENT in Manual Transmission - NV1500 or TRANSMISSION REPLACEMENT in Manual Transmission - NV 3500.
  2. Remove the 2 bolts securing the concentric slave cylinder to the clutch housing.
  3. Remove the slave cylinder from the transmission input shaft.

    If required, the bearing can be removed from the slave cylinder for replacement.

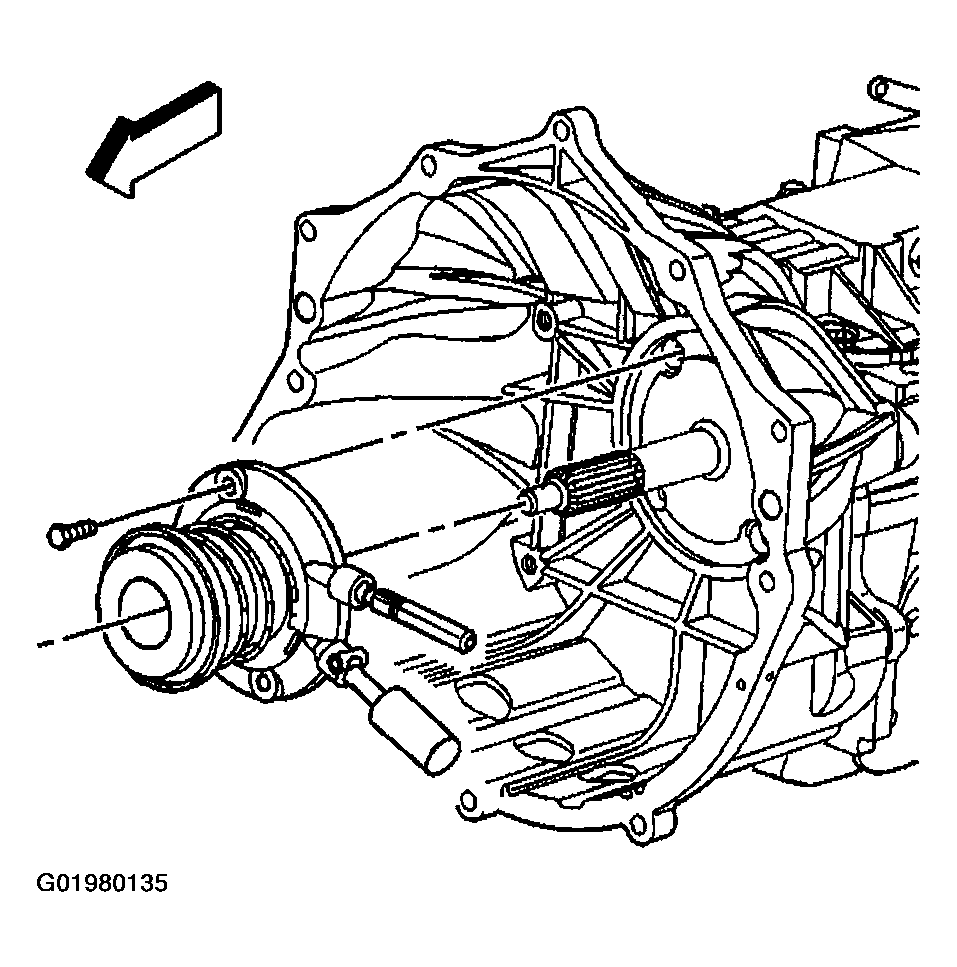

    Fig 1: Removing Slave Cylinder From Transmission Input Shaft
    G01980135Courtesy of GENERAL MOTORS CORP.
