Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the slave cylinder to the transmission input shaft.

    Ensure that the bleed screw and the coupling are positioned toward the transmission ports.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Secure the concentric slave cylinder to the clutch housing with 2 bolts.

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

  3. Install the transmission. Refer to TRANSMISSION REPLACEMENT in Manual Transmission - NV1500 or TRANSMISSION REPLACEMENT in Manual Transmission - NV3500.

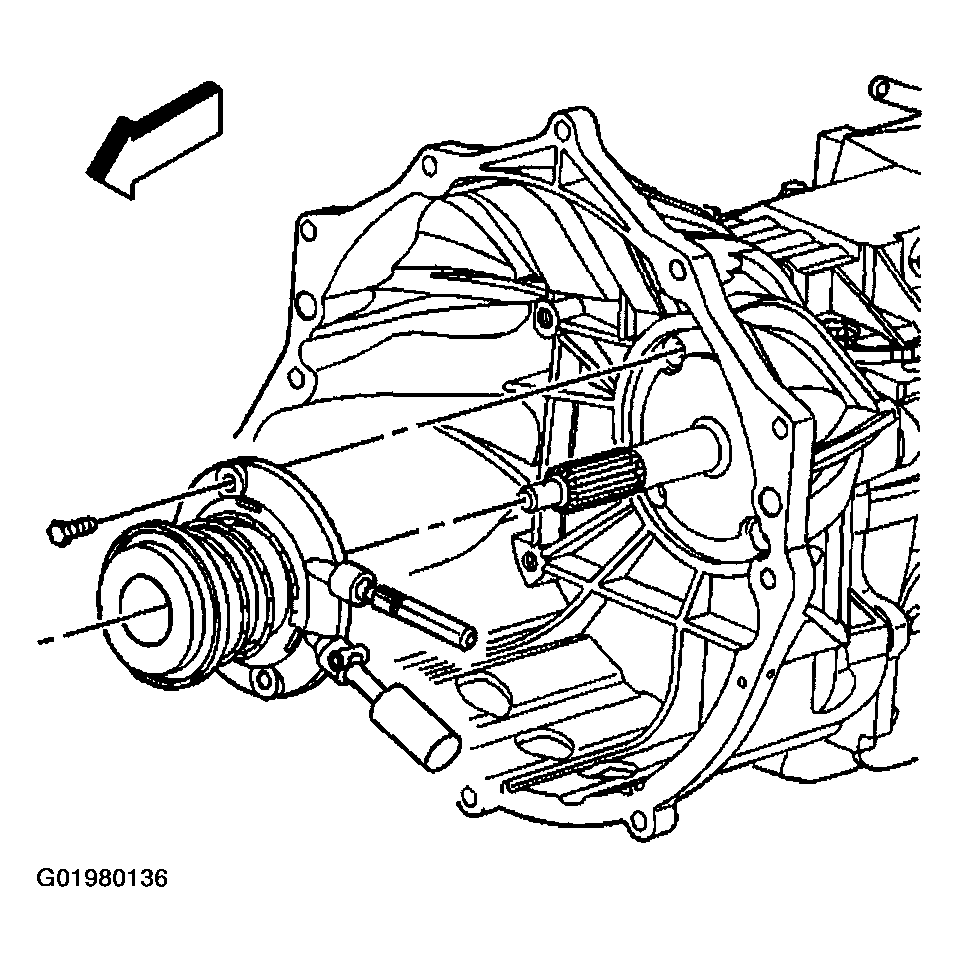

    Fig 1: Installing Slave Cylinder To Transmission Input Shaft
    G01980136Courtesy of GENERAL MOTORS CORP.
