Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the connector to the clutch start switch switch.
  2. Install the clutch start switch to the pushrod with the plastic tabs.
  3. Install the push rod to the clutch pedal.

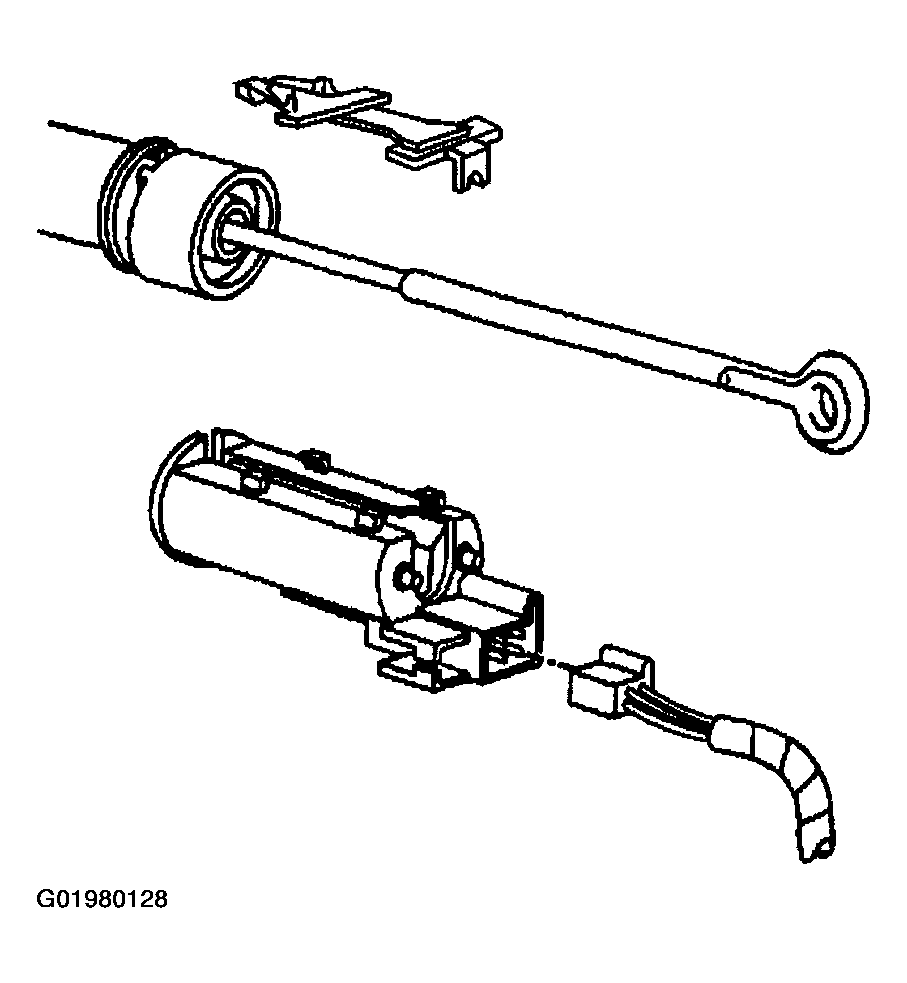

    Fig 1: Installing Clutch Start Switch To Push Rod
    G01980128Courtesy of GENERAL MOTORS CORP.
