Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the transmission. Refer to TRANSMISSION REPLACEMENT in Manual Transmission - NV3500 or TRANSMISSION REPLACEMENT in Manual Transmission - NV1500.
  3. Mark the flywheel, cover plate, and pressure plate for installation alignment.
  4. Install J 33169  through the cover plate, pressure plate, and into the flywheel for support during plate removal.
    Fig 1: Installing Clutch Alignment Tool For Removing Clutch Pressure Plate & Cover Plate
    G01980131Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts and washers securing the clutch pressure plate and cover plate to the flywheel.
  6. Remove J 33169  from the plates.
  7. Clean all the clutch parts with a clean, water dampened cloth in order to remove any fibers.
  8. Inspect all of the clutch parts for the following conditions:
    • Wear and damage
    • Scoring and flatness with a straight edge
    • Driven plate runout

      The runout must not be more than 0.508 mm (0.020 in).

    • Scoring, gouges, and loose rivets on the friction pads
    • Oil soaked friction pads
    • Nicks, burrs, and sliding fit on all splines
    • Bending and breaks in the clutch pressure plate cover spring

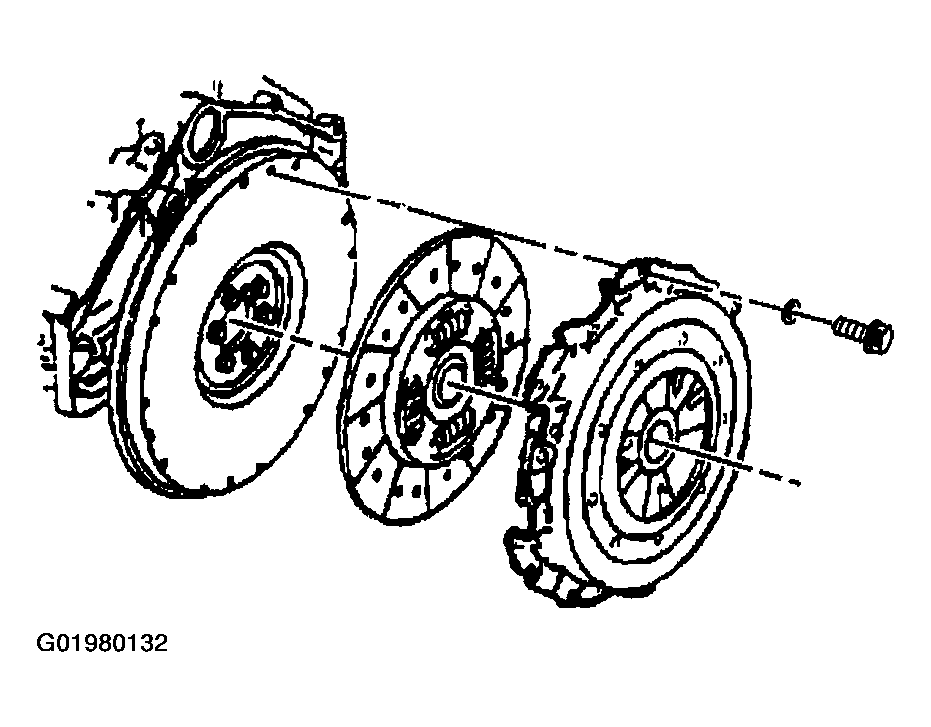

      Fig 2: Clutch Pressure Plate & Cover Plate
      G01980132Courtesy of GENERAL MOTORS CORP.
