Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Place a drain pan under the vehicle.
Remove the electrical connector from the sensor.
Remove the bolt (2).
Using a twisting and pulling motion, remove the vehicle speed sensor (1) from the case.
Remove and discard the O-ring seal (3).

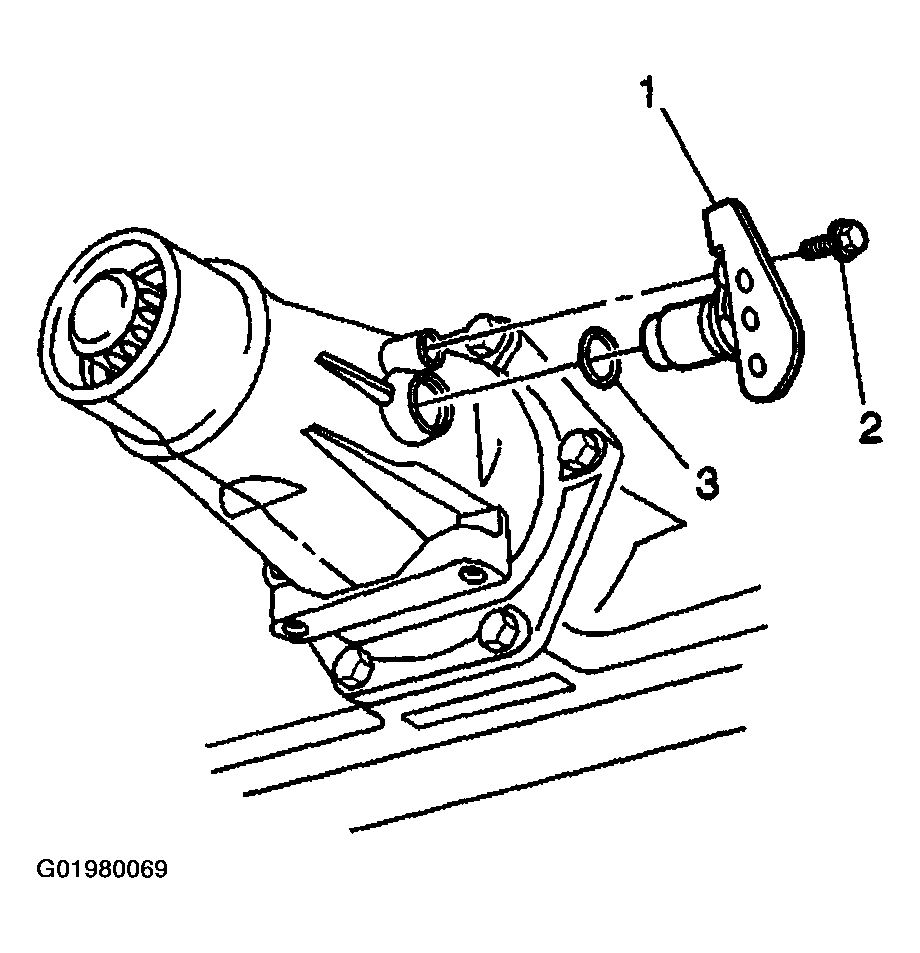

Fig 1: Removing & Discard O-Ring Seal
Courtesy of GENERAL MOTORS CORP.
